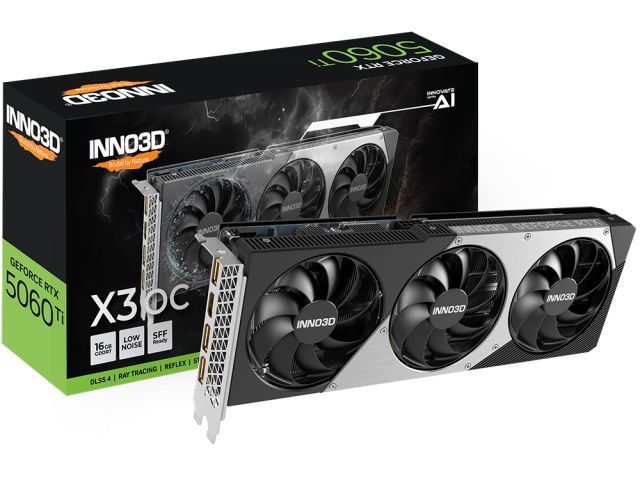

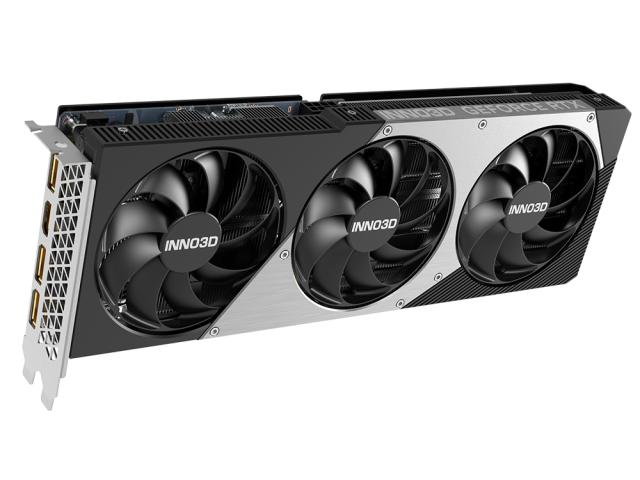

INNO3D® GEFORCE® RTX™ 5060 Ti 16GB X3 OC

The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by Nvidia’s Blackwell architecture. The INNO3D GeForce RTX 5060 Ti 8GB and 16GB X3 OC heralds a new era in graphics technology with these GPUs setting a new benchmark for performance. The X3 OC goes beyond raw power, featuring a stunning redesign that seamlessly blends form and function. This perfect fusion of aesthetics and cutting-edge technology has earned INNO3D widespread acclaim, solidifying its status as a pioneer in graphics innovation.


GPU Engine Specs
CUDA Cores 4608
Boost Clock (MHz) 2602MHz
Base Clock (MHz) 2325MHz

Thermal and Power Spec
Minimum System Power Requirement (W) 650W
Supplementary Power Connectors 1x PCIe 8-pin cables

Memory Specs
Memory Clock 28Gbps
Standard Memory Config 16GB
Memory Interface GDDR7
Memory Interface Width 128-bit
Memory Bandwidth (GB/sec) 448 GB/sec

Feature Support
Real-Time Ray Tracing Yes
Ray Tracing Cores 4th Generation, 72 TFLOPS
Tensor Cores 5th Generation, 759 AI TOPS
NVIDIA Architecture Blackwell
Microsoft DirectX 12 Ultimate
NVIDIA DLSS 4
NVIDIA Ansel Yes
NVIDIA FreeStyle Yes
Bus Support PCI Express Gen 5
NVIDIA ShadowPlay Yes
OS Certification Windows 11 / 10, Linux, FreeBSDx86
NVIDIA Highlights Yes
NVIDIA G-SYNC™-Ready Yes
Game Ready Drivers Yes
NVIDIA Studio Drivers Yes
NVIDIA GPU Boost™ Yes
Vulkan API 1.4
OpenGL 4.6
NVIDIA Encoder 1x Ninth Generation
NVIDIA Decoder 1x Sixth Generation

Graphics Card Dimensions
Length 300mm
Height 116mm
Width 41mm

Display Support
Multi Monitor up to 4
Maxmium Digital Resolution 4K at 480Hz or 8K at 165Hz with DSC
HDCP 2.3
Standard Display Connectors 3x DisplayPort 2.1b, 1x HDMI 2.1b
