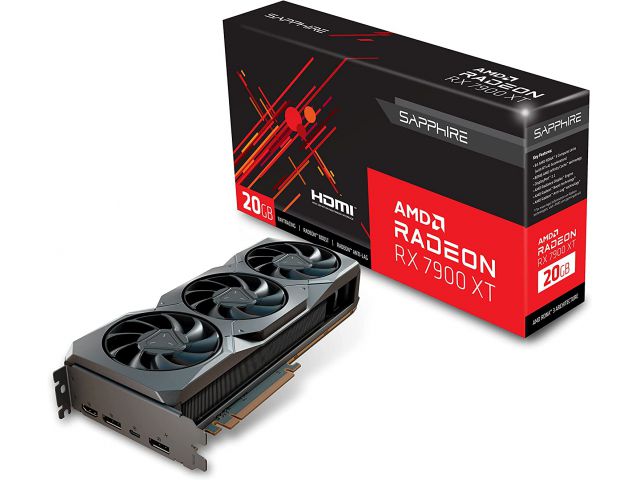

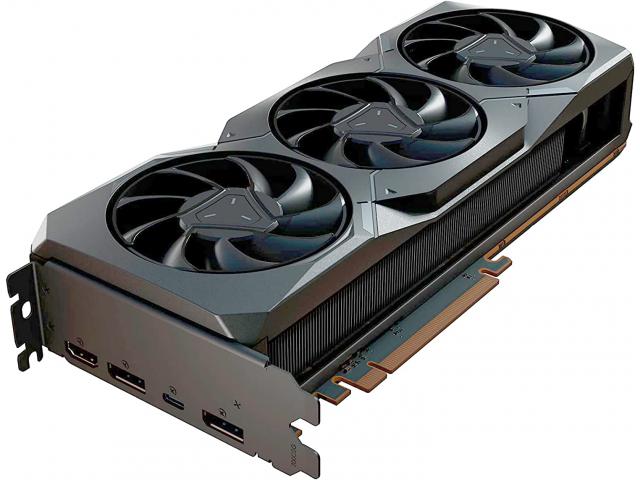

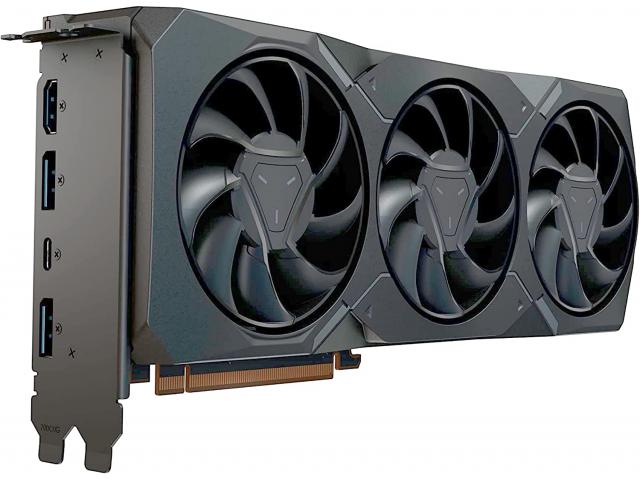

MODEL: SAPPHIRE AMD Radeon™ RX 7900 XT Gaming Graphics Card with 20GB GDDR6, AMD RDNA™ 3 architecture (21323-01-20G)


GPU
AMD Radeon™ RX 7900 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock
Boost Clock: Up to 2400 MHz
Game Clock: Up to 2000 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors 5376
Compute Units 84 CU (with RT+AI Accelerators)
Infinity Cache 80MB
Ray Accelerators 84
Memory Size/Bus 20GB GDDR6
Memory Clock 20 Gbps Effective
Displays Maximum 4 Displays

Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
USB-C: 7680x4320

Interface PCI-Express 4.0 x16

Output
1x HDMI
2x DisplayPort
1x USB-C

BIOS Support UEFI
Game Index 4K

AMD Features
AMD RDNA™ 3 Gaming Architecture
84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
80 MB AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
20 GB GDDR6 on 320-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology
Cooling
3 Fans

Form Factor
2.5 slot, ATX
Dimension: 276.4(L)X 112.7(W)X 51.25 (H)mm

Power Consumption 308W
OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement
Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
