Opis

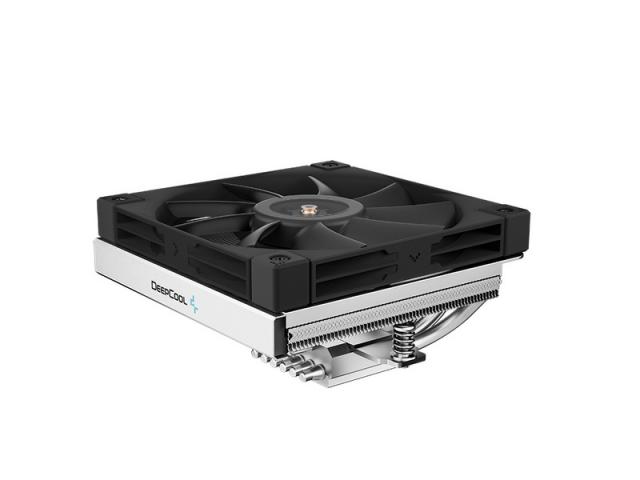

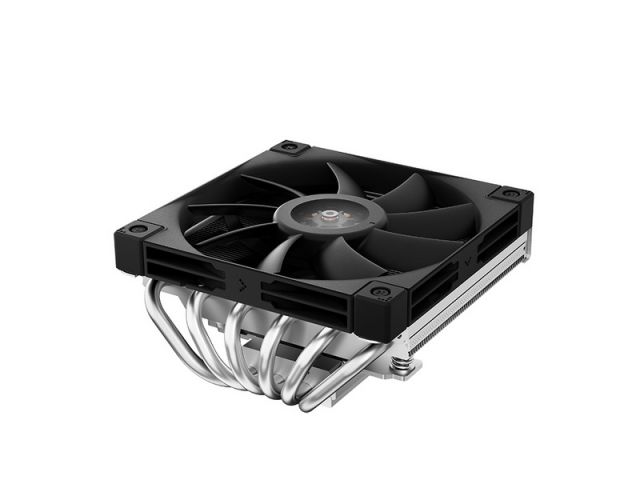

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.

KEEPING THINGS COOL

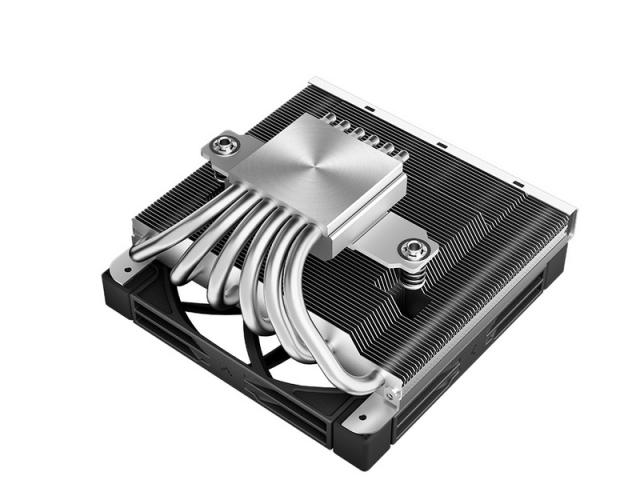

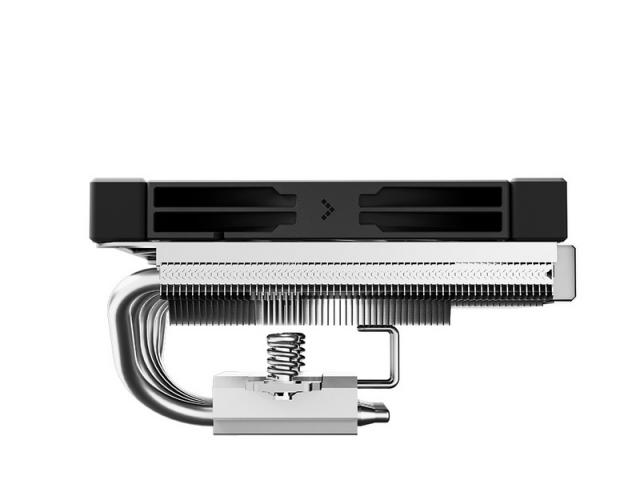

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.

MORE THAN A CPU COOLER

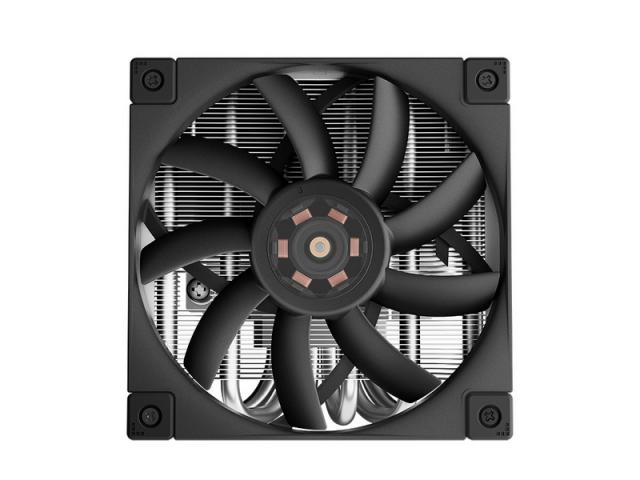

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible three-phase, six-slot, four pole fan motor ensures all of this is accomplished while staying under 24.4 dB(A).

SIMPLIFIED SUPPORT

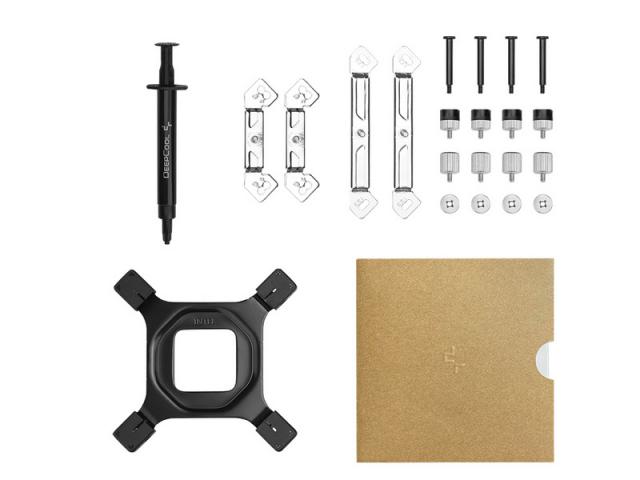

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.

APPLICATION FOR
Intel - LGA1851/1700/1200/1151/1150/1155
AMD - AM5/AM4

SPECIFICATIONS
Product Dimensions: 122×120×67 mm (L×W×H)
Heatsink Dimensions: 121×120×52 mm (L×W×H)
Net Weight: 628 g
Heatpipes: 6 mm×6 pcs
Fan Dimensions: 120×120×15 mm (L×W×H)
Fan Speed: 500~1850 RPM +/- 10%
Fan Airflow: 61.56 CFM
Fan Air Pressure: 1.97 mmAq
Fan Noise: less than 24.4 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.7 A
Fan Power Consumption: 8.4 W
LED Type: White LED
