LIGHT BASE 900 DX Black

Exceptional from every angle

Be prepared for virtually any PC component available and make Light Base 900 DX Black your creative show case.

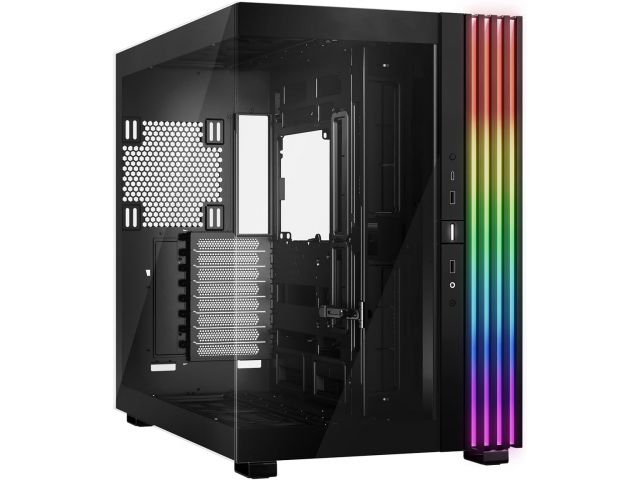

Fully windowed front and side panel for a stunning panoramic view on all your PC components
Impressive illumination from every angle with a massive ARGB LED strip
Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
Extra spacious design for up to two 420mm radiators at the same time and an E-ATX motherboard
For easy installation of radiators and fans outside of the case, the brackets in the top and bottom can be removed quickly
Support for motherboards with backside connector design
2 ARGB and fan hubs with 12 connectors in total


LOOK AT ME!
Panorama design for perfect visibility
You deserve to show off what you got. Large window panels on the front and the side allow you to watch your PC components at work anytime. This makes Light Base 900 DX Black the perfect choice as your show case.

BRIGHT LIGHTS
3 meters of LEDs
Light Base 900 DX Black is predetermined for the big show. Nothing proves that more than the massive ARGB LED strip which is visible from all angles. The 3m long strip consists of 172 LEDs. With an included ARGB controller button and even more colors and modes with motherboard synchronization, you can make Light Base 900 DX Black truly your own. Express yourself!

UP, UP, DOWN, DOWN, LEFT, RIGHT, LEFT, RIGHT…
Change the layout in literal seconds
It takes longer to read this text than to invert Light Base 900 DX Black. With its relocatable feet, you can invert the PC case literally in seconds. You can also choose a horizontal layout, which is executed just as quick. No matter which layout your gaming room requires: Light Base 900 DX Black delivers.

MAKE IT YOUR CASE
Large dimensions for endless creativity
Light Base 900 DX Black features no preinstalled fans. However, up to 10 fans can be installed in total, making Light Base 900 DX Black extremely versatile. With its extra spacious design, it can hold up to 420mm radiators simultaneously, an E-ATX motherboard and even the most powerful graphics cards. Thanks to the two-chamber design, drives and cables are neatly tucked in the back and do not get in the way of airflow.

MAXIMUM USABILITY
A new level of convenience

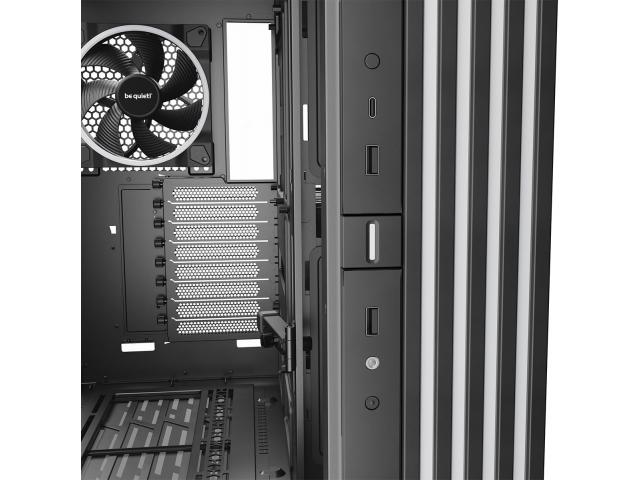

The detachable radiator and fan brackets in the top and bottom make installation of your cooling setup very easy. Each bracket fits a 420mm radiator, which can be installed at the same time. On top of that, you can install another radiator with up to 360mm length in the side, for a whopping 3 radiators. On top of that, Light Base 900 DX Black comes with 2 ARGB and PWM hubs that offer 12 connectors in total. Their positions at the top and bottom allow you to conveniently connect your hardware.

HOLD MY GPU
For a neat interior
Light Base 900 DX Black features a flexible VGA holder that subtly prevents your GPU from sagging. The best part: This holder works in any orientation and with a horizontally or vertically installed graphics card. The result is a clean look even if you use big and heavy graphics cards.

ON THE FLIPSIDE...
Support for motherboards with backside connector design
The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view.


General data
Model Light Base 900 DX Black
Color option Black
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 532 x 327 x 465
Case size incl. stands (L x W x H), (mm) 532 x 327 x 484
Volume (l) 68
PSU form factor ATX PS/2
Net weight (kg) 15.3
Expansion slots 8

Maximum fan installation
Maximum fans 10
Top (mm) 3x 140 / 3x 120
Front (mm) -
Side (mm) 3x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 3x 140 / 3x 120
PSU shroud -

Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360 / 420
Front (mm) -
Side (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140
Bottom (mm) 120 / 140 / 240 / 280 / 360 / 420

PSU compatibility
Maximum dimensions excl. bottom fan (mm) 225
Maximum dimensions incl. bottom fan (mm) 225

Graphics card
HDD cage (in height of graphics card) installed (mm) 495
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 4

Drive bay capacity
5.25 bays (pcs.) -
3.5 slots (scope of delivery) 1
3.5 slots (max.) 2
2.5 slots (scope of delivery) 4
2.5 slots (max.) 6

Cooling
Max.construction height of CPU cooler unit (mm) 190
Airflow channel -

Lighting
LED illumination yes
LEDs (pcs.) 172
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard yes

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) -

Insulation and damping
Top panel insulation mats -
Front panel insulation mats -
Side panel insulation mats -
Anti-vibration decoupled HDD yes
Anti-vibration decoupled fan yes
Anti-vibration decoupled PSU yes
Anti-vibration decoupled motherboard-tray -

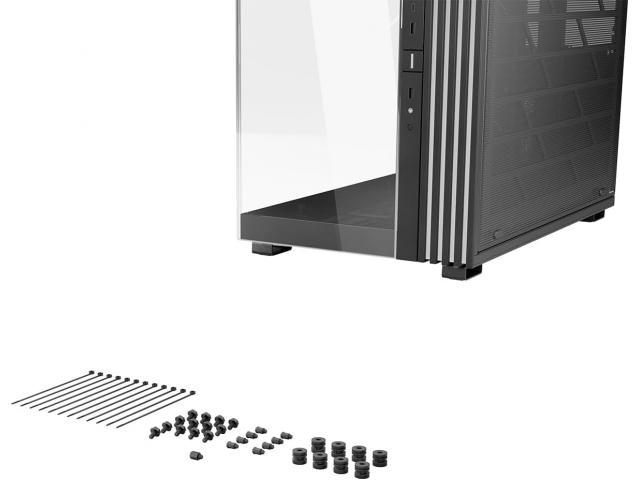

Scope of delivery
Screw set (Drives/Motherboard) yes
Additional standoffs (pcs.) 1
Cable ties (pcs.) 12
VGA holder yes
VGA holder for inverted layout yes

Removeable dust filters
Top 1
Front -
Side 1
Bottom 1

Material
Top cover Steel
Front panel Glass
Side panel Steel
Side panel window Glass
Stands ABS

Article number BGW69
