Opis

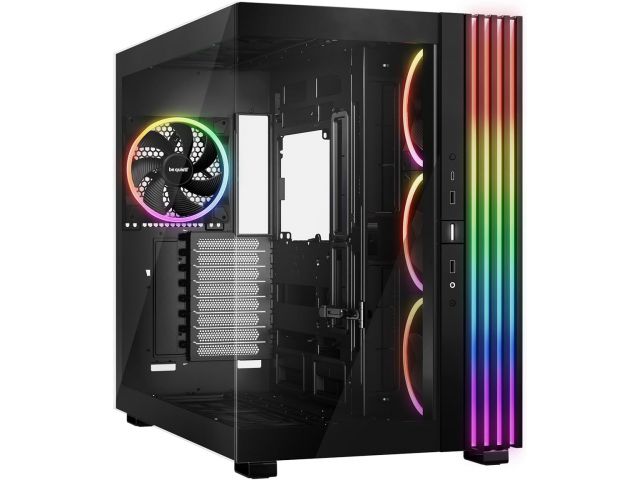

LIGHT BASE 900 FX Black (BGW71)

Exceptional from every angle
Be prepared for virtually any PC component available and make Light Base 900 FX Black with ARGB fans your creative show case.
Fully windowed front and side panel for a stunning panoramic view on all your PC components

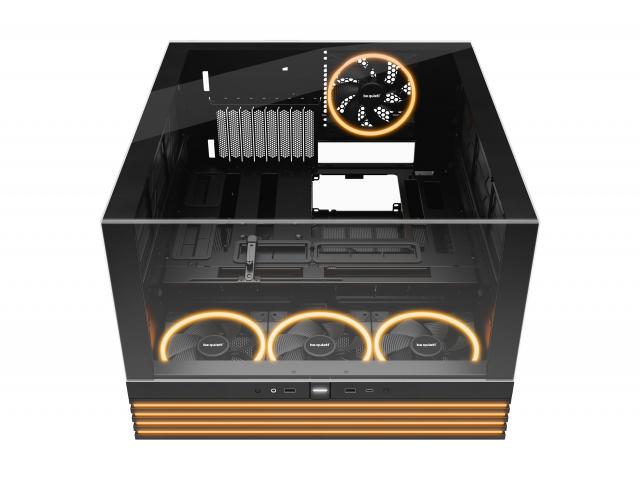

Impressive illumination from every angle with a massive ARGB LED strip
4 Light Wings 140mm PWM fans for high airflow and quiet operation
Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
Extra spacious design for up to two 420mm radiators at the same time and an E-ATX motherboard
Support for motherboards with backside connector design


General data
Model Light Base 900 FX Black
Color option Black
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

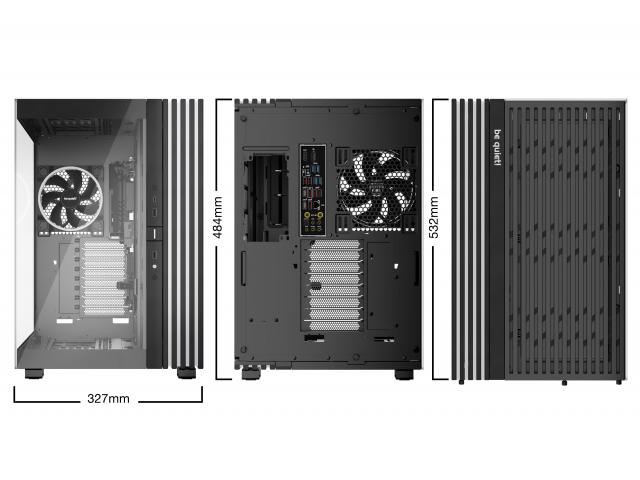

Case size excl. stands (L x W x H), (mm) 532 x 327 x 465
Case size incl. stands (L x W x H), (mm) 532 x 327 x 484
Volume (l) 68
PSU form factor ATX PS/2
Net weight (kg) 16.8
Expansion slots 8

Pre-installed fans
Fan at side 3x Light Wings Reversed 140mm PWM
Fan at rear 1x Light Wings 140mm PWM
Dimensions (L x W x H), (mm) 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1500 / 1300
Airflow at 100% PWM / 12V (CFM / m3/h) 56.0 / 95.1 | 51.37 / 87.28
Air Pressure at 100% PWM / 12V (mm H2O) 1.49 / 1.1
Noise level at 100% PWM / 12V (dB(A)) 23.3 / 25.5
Voltage range (V DC) 5-13.2 / 5-12
Input power (W) 3.8 / 0.72
Input current (A) 0.32 / 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller 2x 12 ports

Maximum fan installation
Maximum fans 10
Top (mm) 3x 140 / 3x 120
Side (mm) 3x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 3x 140 / 3x 120

Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360 / 420
Side (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140
Bottom (mm) 120 / 140 / 240 / 280 / 360 / 420

PSU compatibility
Maximum dimensions excl. bottom fan (mm) 225
Maximum dimensions incl. bottom fan (mm) 225

Graphics card
HDD cage (in height of graphics card) installed (mm) 495
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 4

Drive bay capacity
3.5 slots (scope of delivery) 1
3.5 slots (max.) 2
2.5 slots (scope of delivery) 4
2.5 slots (max.) 6

Cooling
Max.construction height of CPU cooler unit (mm) 190

Lighting
LED illumination yes
LEDs (pcs.) 172
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard yes

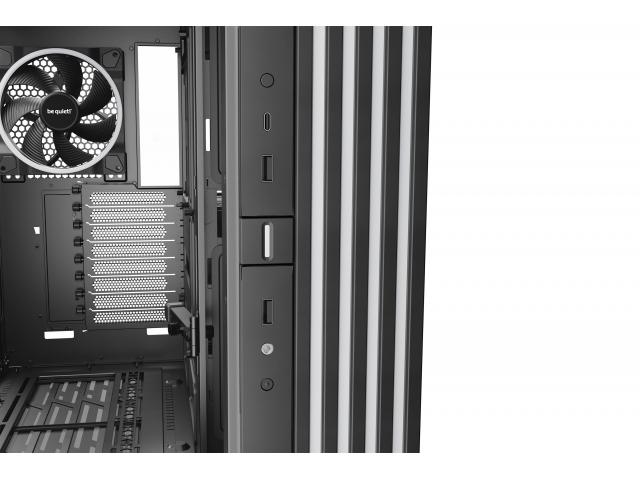

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
HD Audio I/O Mic + Audio

Insulation and damping
Anti-vibration decoupled HDD yes
Anti-vibration decoupled fan yes
Anti-vibration decoupled PSU yes

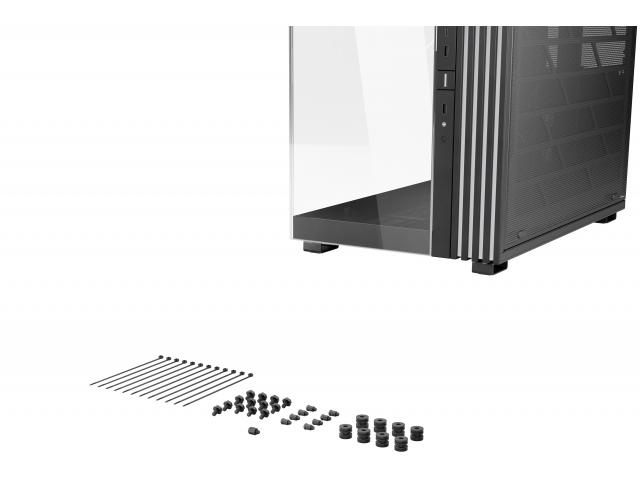

Scope of delivery
Screw set (Drives/Motherboard) yes
Additional standoffs (pcs.) 1
Cable ties (pcs.) 12
VGA holder yes
VGA holder for inverted layout yes

Removeable dust filters
Top 1
Side 1
Bottom 1

Material
Top cover Steel
Front panel Glass
Side panel Steel
Side panel window Glass
Stands ABS

Safety certification
Approvals CE, UKCA

Environmental directives
RoHS yes
WEEE yes
Triman yes

Logistics data
Article number BGW71
Dimensions, package (L x W x H), (mm) 572 x 431 x 632
Gross weight, package (kg) 18.7
Pieces per packaging unit 1
