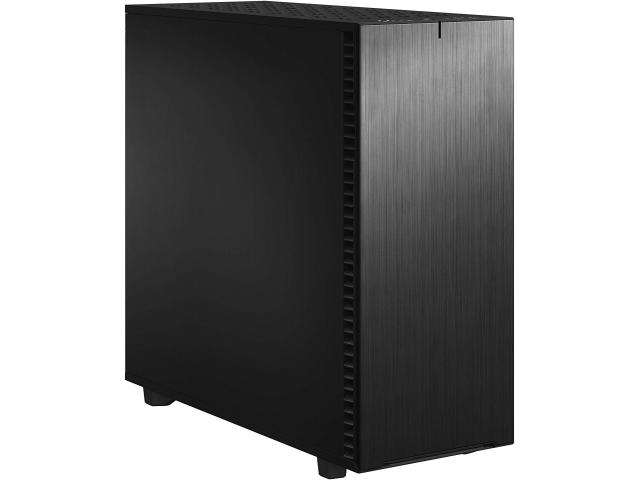

Define 7 XL
The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

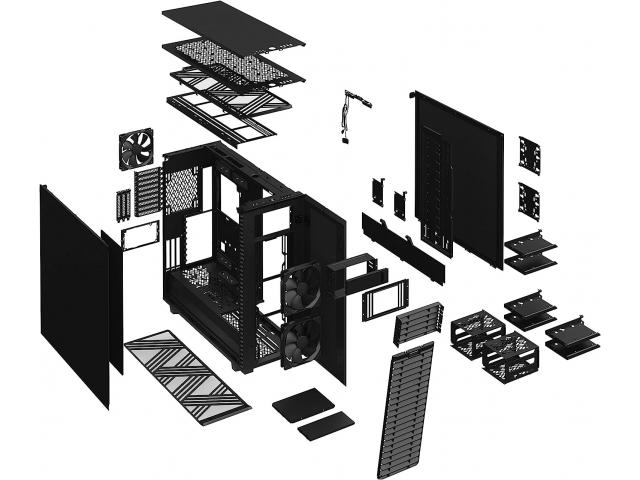

New chassis design opens up to fully expose the case interior

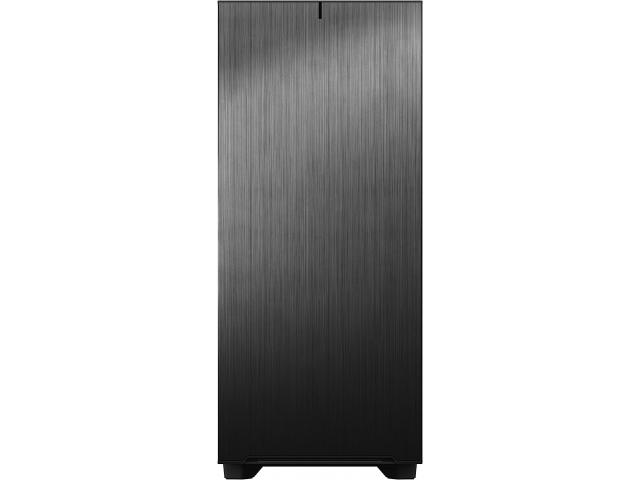

Anodized aluminum front panel with reversible dual-handed hinges
Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout


3.5"/2.5" Universal drive brackets 6 + 2 included, 18 positions total
Dedicated 2.5" drive brackets 2 included, 5 positions total
5.25” drive mounts 2
Expansion slots 9 + 3
Front ports 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts 11 x 120 mm or 9 x 140 mm
Front fan 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan 4 x 120 mm or 3 x 140 mm
Rear fan 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan 2 x 120/140 mm
Dust filters Top, 2 x Front, Bottom + PSU
Fixed velcro straps Yes
Cable routing grommets Yes
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket
Left side panel Industrial sound-damped steel
Right side panel Industrial sound-damped steel

Compatibility
Motherboard compatibility E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Power supply type ATX
PSU max length 250 mm (both HDD cages installed)
GPU max length Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height 185 mm
Front radiator Up to 480/420 mm
Top radiator Up to 480/420 mm
Rear radiator 120 mm
Bottom radiator Up to 240/280 mm
Cable routing space 30 mm

Dimensions
Case dimensions (LxWxH) 604 x 240 x 566 mm
Case dimensions w/o feet/protrusions/screws 590 x 240 x 548 mm
Net weight 16.53 kg
Volume 77.6 liters

Package contents Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays

Product code FD-C-DEF7X-01
