Opis

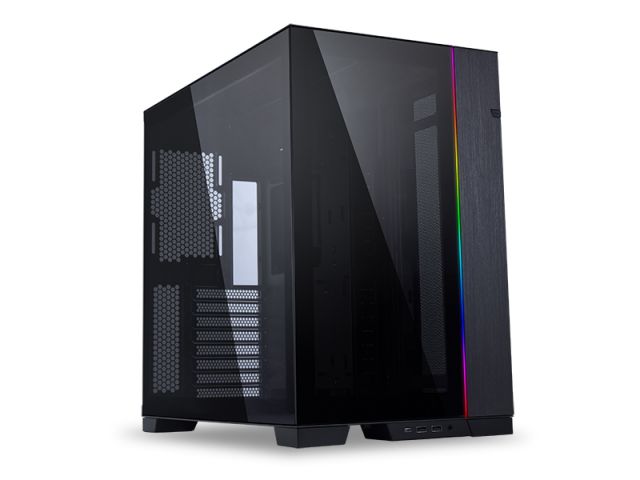

O11 Dynamic EVO
Mid-tower chassis with two modes: Normal Mode/ Reverse Mode
Feature multi-directional power button and movable IO module
Front and side tempered glass panels for components and RGB display
Supports up to 3x 360 radiators and a maximum of 10 fans
Offers 9 storage drives mounting space
Dual-chamber layout with hooks friendly cable management compartment


THE MODERN BLACK
The O11 Dynamic series classic tinted glass and brushed aluminum panel are once again combined in proper proportion.
Brushed Aluminum
Black Coated Mesh Panel
Tinted Tempered Glass


SPECIFICATIONS
PRODUCT NAME O11D EVO
MODEL O11DEX
COLOR Black
DIMENSION (D)465mm × (W)285mm × (H)459mm

MATERIAL
4mm Aluminum
4mm Tempered Glass
1mm Steel Structure

MOTHERBOARD SUPPORT E-ATX (width: under 280mm)/ATX /M-ATX/ITX
PSU SUPPORT 220mm

FAN SUPPORT
Top: 120mm × 3 or 140mm × 2
Side: 120mm × 3 or 140mm × 2
Bottom: 120mm × 3 or 140mm × 2
Rear: 120mm × 1
On Drive Cage: 60mm × 1

RADIATOR SUPPORT
Top: 360mm × 1 or 280mm × 1
*Total max thickness: 87.5mm
Side: 360mm × 1 or 280mm × 1
*Inner scenario total max thickness:
83mm(120mm fan on top and bottom)
63mm(140mm fan on top and bottom)
*Outer scenario total max. thickness:
120mm(120mm fan on top and bottom)
100mm(140mm fan on top and bottom)
Bottom: 360mm × 1
*Total max thickness: 87.5mm

DRIVE SUPPORT
Bottom:2.5” SSD × 4 or 3.5” HDD × 2
Side:2.5” SSD × 4 or 3.5” HDD × 2
Drive Cage:2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
Cable Management Bar:2.5” SSD × 2
*Only 9 sets of 2.5” SSD mounting pads are provided

GPU LENGTH CLEARANCE 426 mm
CPU HEIGHT CLEARANCE 167 mm
EXPANSION SLOTS 8

I/O PORTS
2 × USB 3.0
1 × USB 3.1 TYPE-C,
1 × HD AUDIO/ MIC
LED Color and Mode button
Reset Button
Power Button

DUST FILTER Bottom × 1
