Opis

ODYSSEY X is a high-quality aluminum chassis that established a unique look for performance-oriented enthusiasts with an open airflow design and spacious main chamber for large components.

2 STYLES WITH 3 MODES OF YOUR CHOICE
ODYSSEY X enables PC enthusiasts to transform this full tower case into the mode they prefer.

DYNAMIC MODE
Simply assemble the exterior pieces to get the standard mode. Supports up to two 360 radiators. Includes an adjustable water pump mounting bracket.

DYNAMIC-R (ROTATE) MODE
Rotate the motherboard tray to improve cooling for the GPU. Access the motherboard’s I/O port from the top. Supports 480mm + 280mm radiator or 360mm + 360mm radiator.

PERFORMANCE MODE
Flip the case 90° to achieve an unobstructed airflow for optimal thermal control. Supports 480mm + 280mm radiators or 360mm + 360mm radiators. Included adjustable water pump mounting bracket for tall water pump.

PREMIUM ALUMINUM CRAFTSMANSHIP
The entire designed concept of the ODYSSEY X revolves around an open airflow case for the system to run at maximum performance without thermal throttling. Lighting components are well displayed through the 4mm thick tinted tempered glass panels while abundant airflow comes through large gaps present in the glass panel fold.

OPTIMIZED CABLE MANAGEMENT AND AMPLE DRIVE MOUNTING SPACE

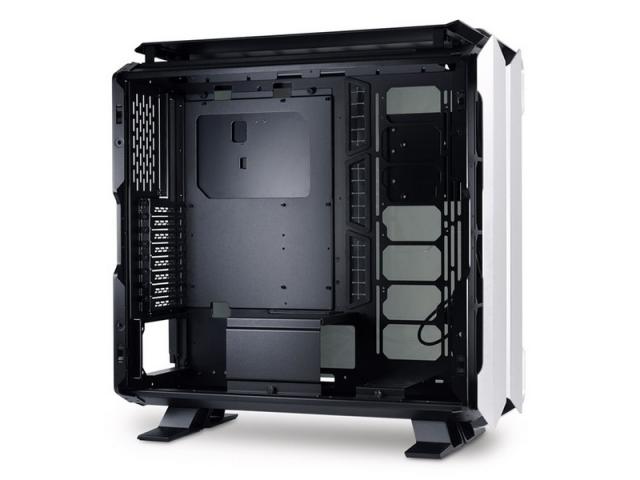

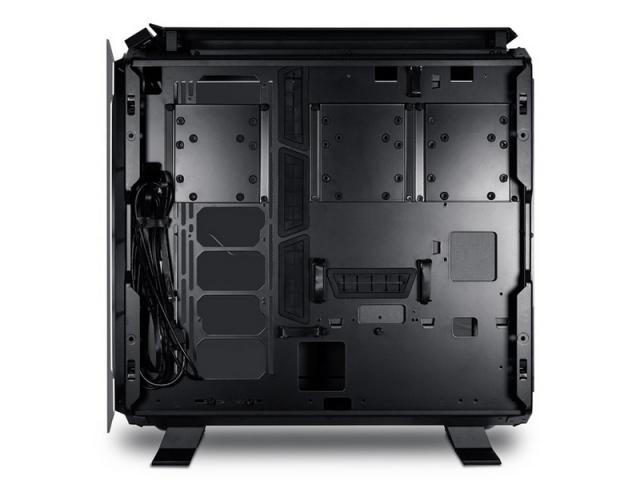

With rubber grommets covering the cable pass-through holes and the presence of the 5 cable channels equipped with Velcro straps, routing cables in the ODYSSEY X is an easy job. Moreover, the Dynamic mode top cover is converted into a cable cover in Performance mode, enhancing the look of the build. There are 3 mounting spaces for 2.5” SSD or 3.5”HDD behind the motherboard tray.

FRONT I/O MODULE

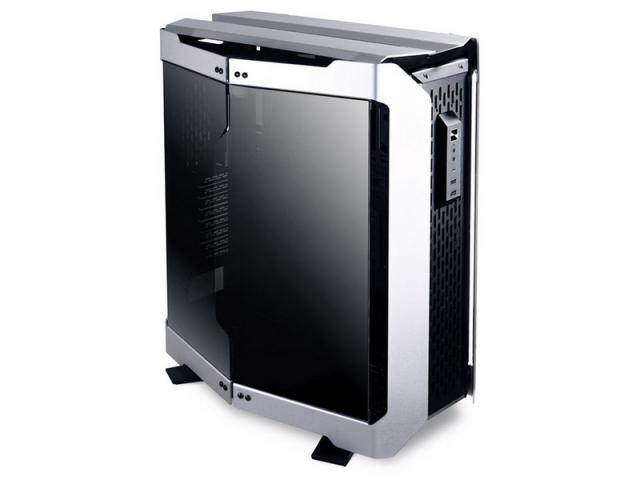

The I/O port module can be relocated to another place in a different mode and can be oriented in the user’s preferred direction.

IN COLLABORATION WITH DER8AUER
Like the O11 Dynamic series, LIAN LI consulted with DER8AUER to review the design of the ODYSSEY X, a world-renowned German overclocking, water cooling, and gaming evangelist. Thanks to his contribution, a seal plate of DER8AUER’s approval and LIAN LI logo is included in the accessory box, users could apply it to any place in the case to show the quality and reliability.

SPECIFICATIONS
COLOR: Silver
DIMENSIONS (DxWxH): Dynamic/Dynamic-R (Rotate): 575.5mm x 234mm x 558.5mm, Performance: 537.1mm x 368.6mm x 596.7mm
MATERIALS: Aluminum, Steel, 4.0mm Black tempered glass (both sides)
MOTHERBOARD SUPPORT: EEB/E-ATX/ATX/Micro-ATX/Mini-ITX
FAN SUPPORT: Dynamic: Front:3 x 120mm or 2 x 140mm, Top:3 x 120mm or 2 x 140mm, Side:3 x 120mm or 2 x 140mm / Dynamic-R (Rotate): Front:3 x 120mm or 2 x 140mm, Base:4 x 120mm or 3 x 140mm / Performance: Front:4 x 120mm or 3 x 140mm, Top:3 x 120mm or 2 x 140mm
RADIATOR SUPPORT: Dynamic: Front:1 x 360/280/240mm, Side:1 x 360/280/240mm / Dynamic-R (Rotate): Front:1 x 360/280/240mm, Base:1 x 480/420/360/280/240mm / Performance: Front:1 x 480/420/360/280/240mm, Top:1 x 360/280/240mm
PSU SUPPORT LENGTH: Max 280mm
GPU LENGTH CLEARANCE: Max 423mm
CPU COOLER HEIGHT CLEARANCE: Max 167mm
DRIVE: 3 X 3.5” HDD or 3 X 2.5” SSD
EXPANSION SLOT: 8
I/O PORTS: 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO
