H510 Elite
Premium Compact Mid-tower ATX Case

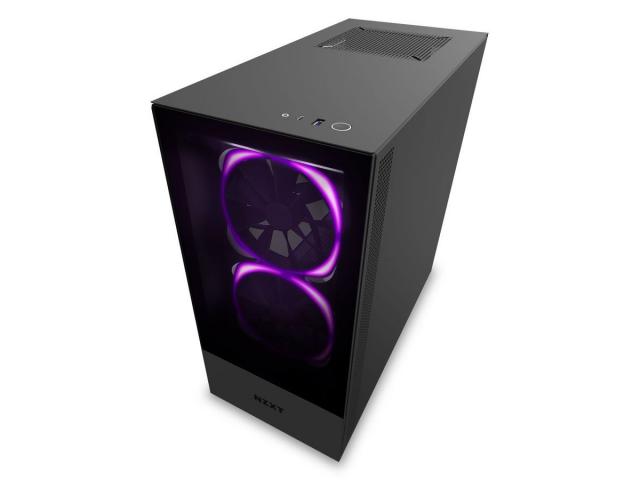

The H510 Elite compact ATX mid-tower is perfect for your RGB build. Behind the flush-mounted, tempered glass front panel, you’ll discover our renowned Aer RGB 2 fans keeping your components brilliantly cool. Well-engineered airflow, removable radiator mounting bracket, multiple fan filters, vertical GPU mount, a front panel USB-C connector, and an all-steel and tempered glass construction are just some of the key features you’ll get. The H510 Elite also includes the NZXT Smart Device V2, powering the built-in RGB light strips and case fans.
Two tempered glass panels top off your build, perfectly showcasing your RGB build. We’ve included two Aer RGB 2 fans and an RGB LED strip to get you started.

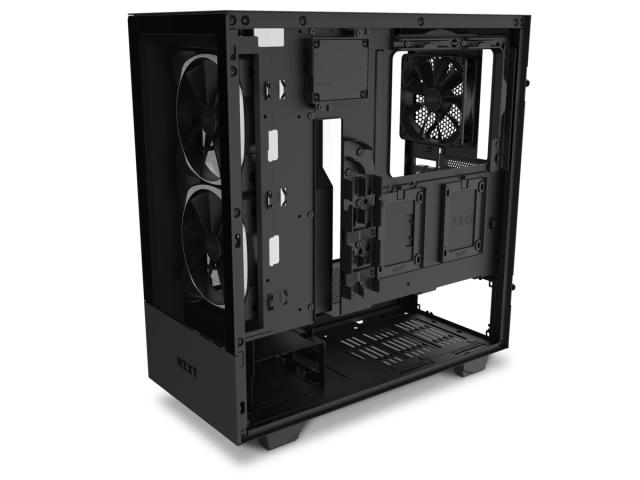

The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.

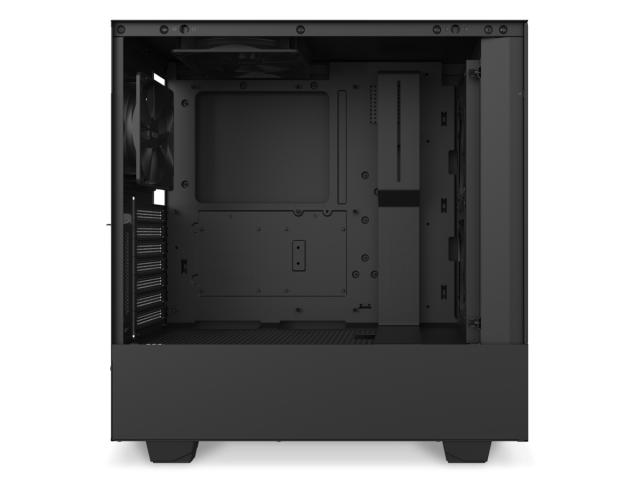

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.


Dimensions
W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)

Material(s) SGCC Steel, Tempered Glass
Weight 7.5 kg

Clearance
Cable Management: 19-23mm
GPU Clearance: Up to 368.6mm w/o front radiator installed, up to 313.6mm with front radiator installed
Vertical GPU Mount Clearance: 40.64mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)

Motherboard Support Mini-ITX, MicroATX, ATX

Front I/O Ports
1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack

Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x USB 2.0 Internal Header
1x HD Audio Header

Filters All Air Intakes

Smart Device V2
3x Fan channels with Max 10W per channel output*
2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans
Built-in noise detection module
*Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters.

RGB LED Lighting
2x Integrated Aer RGB 2 140mm Fans
1x Integrated addressable LED Strip

Vertical GPU Mount 2 Slots

Drive Bays
2.5": 2+1
3.5": 2+1

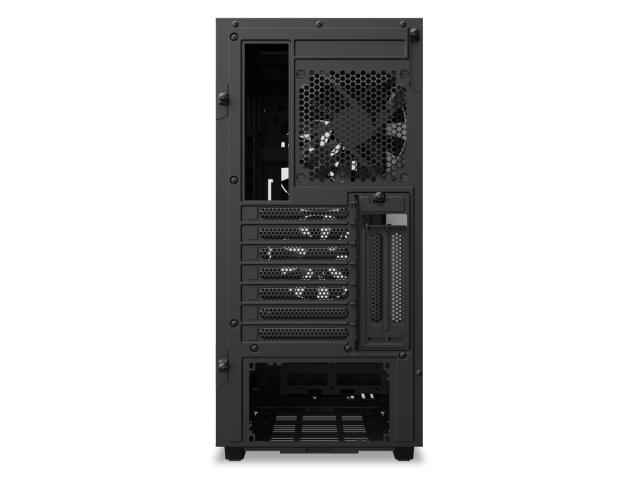

Expansion Slots 7

Radiator Support
Front: 2x 140 or 2x 120mm with Pull
*Note: Need to remove RGB fans if you plan to mount the radiator to the front
Rear: 1x 120mm

Fan Support
Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included)
Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included)
Rear: 1x 120mm (1x AER F120 Case Version Included)

Fan Specs
Aer RGB 2 (140mm)
Speed: 500-1,500 RPM
Airflow: 30.39 - 91.19 CFM
Noise: 22 - 33 dBA
Air Pressure: 0.17 – 1.52mm-H2O
Bearing: Fluid Dynamic Bearing
Fan Connector 4-Pin PWM

Model Number CA-H510E-B1
