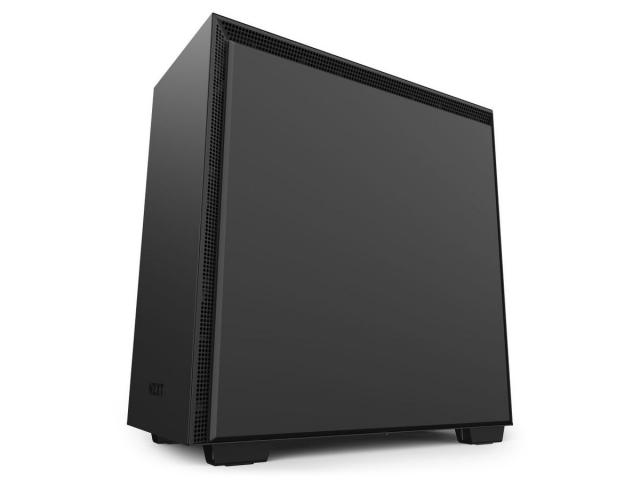

Mid-Tower Case with Tempered Glass
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H710i.

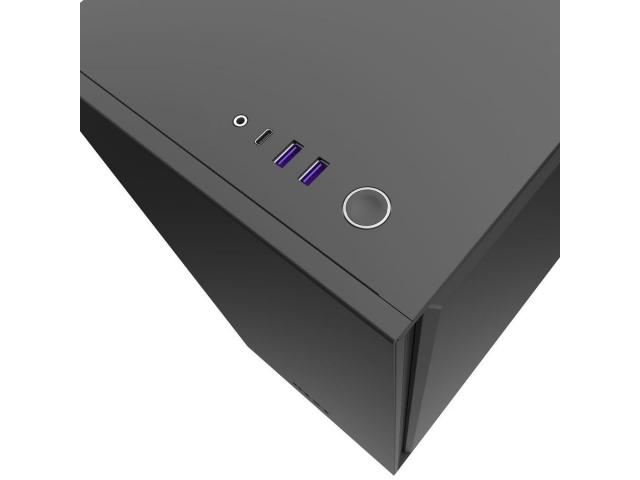

With a USB 3.1 Gen 2-compatible USB-C connector on the front panel, it’s easier than ever to connect the newest smartphones, high-speed external storage, or the latest peripherals to your PC.

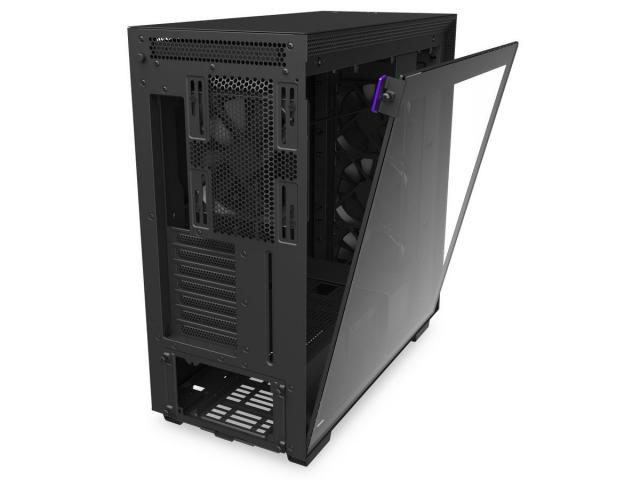

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Cable management can take more time than assembling a system. Our patented cable routing kit with pre-installed channels and straps makes wiring easy and intuitive.
Four Aer F120mm fans are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a reversible,removeable, top-mounted bracket designed for radiators up to 360mm simplifies the installation of either closed-loop or custom-loop water cooling.


Dimensions W: 230mm H: 516mm D: 494mm (with feet)
Material(s) SGCC Steel and Tempered Glass
Weight 12.1 kg
Motherboard Support Mini-ITX, MicroATX, ATX and EATX (Up to 272mm or 10.7-inches)

Front I/O Ports
1x USB 3.1 Gen 2 Type-C
2x USB 3.1 Gen 1 Type-A
1x Headset Audio Jack

Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x HD Audio Header

Filters All Air Intakes

Included Accessories
Installation screws
10x Cable ties
1x Headset Audio Jack Splitter (4 pole to 3 pole)

Expansion Slots 7
Drive Bays 2.5”: 7, 3.5”: 2+2

Fan Support
Front: 3x 120/ 2x 140mm (3 Aer F120 Case Version included)
Top: 3x 120/2x 140mm
Rear: 1x 120/1x 140mm (1 Aer F140 Case Version included)

Radiator Support
Front: 2x 140 or 3x 120mm with Push/Pull
Top: 2x 140 or 3x 120
Rear: 1x 120

Fan Specs
Aer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42
CFM Noise: 28 dBA
Bearing: Rifle Bearing
Aer F140 (Case Version)
Speed: 1,000 ± 200 RPM
Airflow: 68.95 CFM
Noise: 29 dBA
Bearing: Rifle Bearing

Clearance
Cable Management: 18-22mm
GPU Clearance: Up to 413mm
CPU Cooler: Up to 185mm
Front Radiator: 60mm
Top Radiator: 30mm
Reservoir & Pump: Up to 224mm (Along cable bar)

Model Number CA-H710B-B1
