Opis

Uz USB 3.1 (Gen 2) Type-C™ mogu se postići još veće brzine prijenosa podataka. Visoku brzinu prijenosa do 10 Gbit/s osigurava isporučeni USB 3.1 Type-C™ kabel i potreban mu je samo odgovarajući krajnji uređaj u obliku osobnog računala, tableta ili sličnog sa sustavom Windows® ili macOS®.

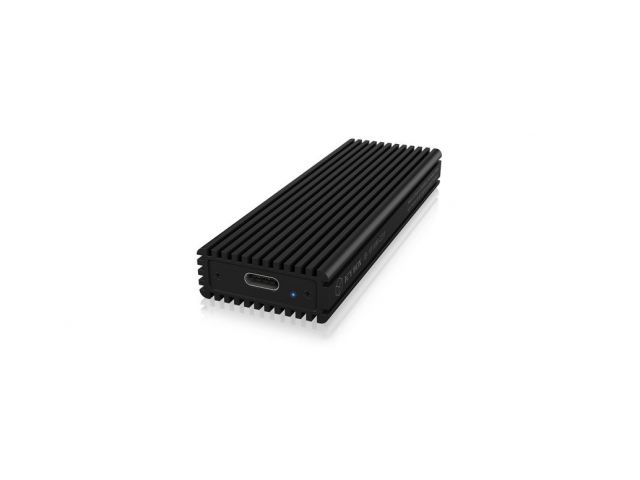

IB-1816M-C31
Enclosure for 1x NVMe with USB 3.1 (Gen 2) Type-C® and Type-A interface

ROBUST: The high-quality aluminium housing is very stable and protects the SSD from external damage. The use of an elegant cooling fin design also ensures excellent heat dissipation
VERSATILE: The enclosure offers high compatibility and supports all common lengths of NVMe SSDs (22x30/42/60/80). It can be used flexibly and is easy to transport
VERY FAST: Thanks to the Type-C interface and USB 3.1 (Gen 2), transfer rates of up to 10 Gbit/s are achieved. This means your data can be transferred at lightning speed
FLEXIBILITY: Experience maximum flexibility with the two included USB cables. One is USB Type-A and the other is USB Type-C, giving you the ability to connect the IB-1816M-C31 to a variety of different end devices
EASY TO USE: Tool-free installation through Plug & Play and HotSwap. The enclosure can be used directly and everywhere. In addition, there is an LED display for operation and hard disk access


Key features
Interface to host computer: USB 3.1 (Gen 2) Type-C™, up to 10 Gbit/s
Supports PCIe 3.0 x2 transfer rate of up to 1000 megabyte per second
M-Key socket for NVMe SSDs, 22x30/42/60/80 mm
Housing made of high-grade aluminium
LED for power and access
Supports Windows®, macOS®

Packing content
1x IB-1816M-C31, 1x Type-C™ to Type-C™ cable (45 cm length), 1x Type-C™ to Type-A cable (45 cm length), 1x Screwdriver, 1x Screws set, 2x Cover panels, 1x Quick installation guide


M.2 becomes mobile
With the help of the external USB 3.1 Type-C™ enclosure IB-1816M-C31 you can take one NVMe card with you quickly and easily. It allows access to M.2 SSDs of up to 2 TB no matter to which host you connect it. The IB-1816M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system.

Colour Black
Material Aluminium
Interface to host computer USB 3.1 (Gen 2) Type-C™
Transfer rate Up to 10 Gbit/s
Length of cable 45 cm
M.2 socket M-Key
M.2 card size 22x30/42/60/80 mm
M.2 interface
PCIe x2
SSD capacity Unlimited
Plug & Play Yes
LED Power and access
Chipset JMS583
Power supply Bus powered
Operating system Windows®, macOS®


System requirements
Your host computer must have a USB Type C™ interface.
The IB-1816M-C31 also works with computers and notebooks with USB 3.0/2.0/1.1 Type-A interfaces as long as the appropriate adapter is available.
The enclosure also works on devices with a Thunderbolt™ 3 interface with the transfer rate of 10 Gbit/s specified by USB 3.1 (Gen 2).
The Type-C™ interface can be connected with USB 3.0 or 2.0 standard in some notebooks and computers. The enclosure only supplies the full speed of 10 Gbit/s to USB 3.1 (Gen 2) Type-C™ interfaces.
The following operating systems are supported: Windows®, macOS®
