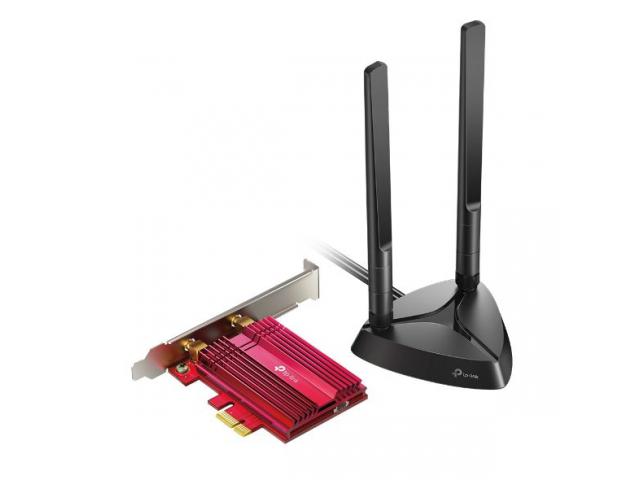

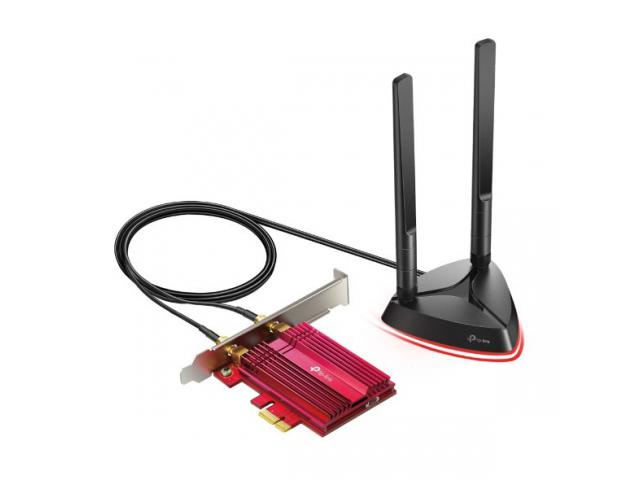

Archer TX3000E
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unrivaled Wi-Fi 6 Speed: Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Smoother Experience: 75% lower latency ensures ultra-responsive real-time gaming
Reliable Connections: Intel Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
Wider Signal Coverage: Two multi-directional antennas with magnetized base are designed for optimum signal reception
Bluetooth 5.2: The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
Improved Security: The latest security enhancements WPA3 provides enhanced protection in personal password safety
Fine Crafting: Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
Backward Compatibility: Full support for 802.11ac/a/b/g/n standards

Specifications
HARDWARE FEATURES
- Dimensions: 95.2×120.8×21.5 mm
- Antenna Type:
* Two High-Gain Dual Band Antennas
* Magnetized Antenna Base
- Chipset: Intel Wi-Fi 6 Chipset

WIRELESS FEATURES
- Wireless Standards:
* IEEE 802.11ax/ac/n/a 5 GHz
* IEEE 802.11ax/n/g/b 2.4 GHz
* Bluetooth 5.2/4.2/4.0
- WLAN Signal Rate:
* 5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
* 2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
- WLAN Reception Sensitivity:
* 5 GHz:
11ax HT160:-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160:-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
* 2.4GHz:
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
- WLAN Transmit Power:
* 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
* 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
- WLAN Modes: Infrastructure mode
- Wireless Security: Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
- Bluetooth Profiles: Archer TX3000E support the native BT profiles implemented in Windows 10

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: Archer TX3000E, Magnetized Antenna Base with 1m RF Cable, Two 5 dBi High Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD
- System Requirements: Windows 10 (64-bit) only
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
