Opis

POWER ZONE 2 1000W
Exceptional efficiency for Gamers
Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.0%)
Semi-passive zero-RPM cooling
Fan runs on for 2-5 minutes to avoid frequent starting noise
Pure Wings 3 140mm fan for quiet and efficient cooling
90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
Advanced voltage regulation and stability thanks to LLC technology
Unique look with an unmistakable mesh design
One massive high-performance 12V-rail


Model POWER ZONE 2 | 1000W
Continuous power (W) 1000
Peak power (W) 1070
Form factor ATX 3.1
Form factor EPS 12V Version 2.92
Topology LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 13 / 6.5
Power factor at 100% load >0.98
Modern standby yes
Power consumption in standby (W) <0.18
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40

80 PLUS certification Platinum
Cybenetics ETA Platinum
Efficiency (%) at 230V, 2% load 66.9
Efficiency (%) at 230V, 10% load 89.8
Efficiency (%) at 230V, 20% load 93.0
Efficiency (%) at 230V, 50% load 94.0
Efficiency (%) at 230V, 100% load 92.6

Cybenetics LAMBDA A+
Fan Pure Wings 3
Fan size (mm) 140
Bearing technology Rifle
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2100
dB(A) at 10% load 6.5
dB(A) at 20% load 6.5
dB(A) at 50% load 6.5
dB(A) at 100% load 27.2

Multi-rail operation (12V rails) -
12V single rail operation yes
Overclocking key -
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 83.3
+12V2 (A) N/A
+12V3 (A) N/A
+12V4 (A) N/A
+12V5 (A) N/A
+12V6 (A) N/A
-12V (A) 0.5
+5Vsb (A) 3
Max. combined power 12V (W) 999.6
Max. combined power 12V-2x6 (W) 600
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 22.7
Hold-up time at 80% load (ms) 30.5
Power good signal (ms) 100 - 150

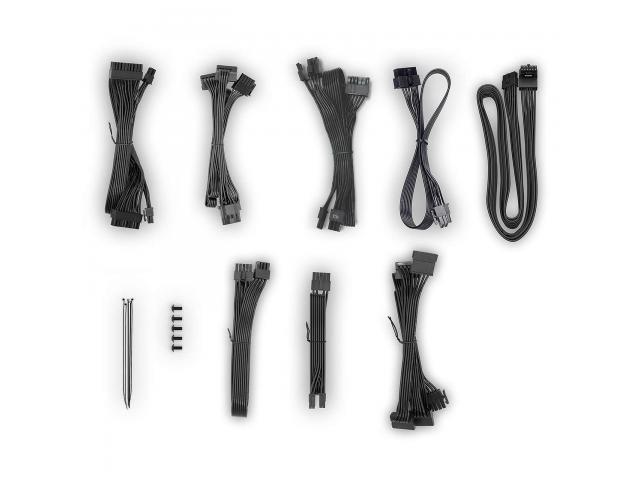

Modular cables yes
Sleeved cables yes
Flat cables yes
Maximum cable length (cm) 100
Cable length to motherboard (cm) 60
No. of cables 8
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) 1
12V-2x6 cables 1
PCI-e 6+2-pin (GPU) 3
PCI-e 6-pin (GPU) -
SATA 7
PATA 1
FDD (Floppy) -

OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)

Safety certification:
CB
CE
cTUVus
CU
FCC
TÜV
UKCA

Energy Star 8.0
ErP
WEEE
RoHS
Triman

Dimensions without cable (L x W x H), (mm) 160 x 150 x 86
Weight (kg) 1.78
Color Black
