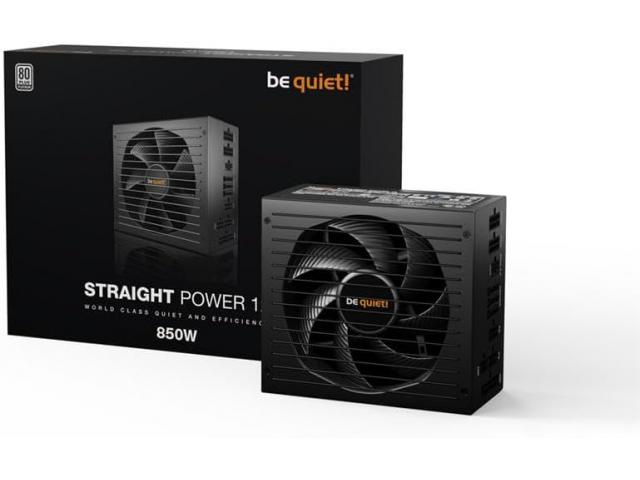

STRAIGHT POWER 12
850W

World class quiet and efficiency
Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.

80 PLUS Platinum efficiency (up to 94%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Virtually inaudible Silent Wings 135mm fan
Funnel-shaped fan opening on PSU case for high airflow intake
Full bridge LLC technology for unmatched signal stability
One massive high-performance 12V-rail
Japanese 105°C capacitors ensure highest stability and reliability
Modular cable management for maximum convenience


General data
Model Straight Power 12 850W
Continuous power (W) 850
Peak power (W) 920
Form factor Version 3.1
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 10 / 5
Power factor at 100% load >0.99
Modern standby yes
Power consumption in standby (W) 0.17
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40


Efficiency
80 PLUS certification Platinum
Efficiency (%) at 230V, 2% load 61.0
Efficiency (%) at 230V, 10% load 89.2
Efficiency (%) at 230V, 20% load 93.1
Efficiency (%) at 230V, 50% load 94.0
Efficiency (%) at 230V, 100% load 92.3


Fan and cooling technology
Cybenetics Noise Rating -
Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2100
dB(A) at 10% load 7.5
dB(A) at 20% load 7.5
dB(A) at 50% load 7.7
dB(A) at 100% load 22.1


Output
Multi-rail operation (12V rails) -
12V single rail operation yes
Overclocking key -
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 70.8
+12V2 (A) -
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.5
+5Vsb (A) 3
Max. combined power 12V (W) 849.6
Max. combined power 12V-2x6 (W) 600
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 19.2
Hold-up time at 80% load (ms) 26.2
Power good signal (ms) 100 - 150

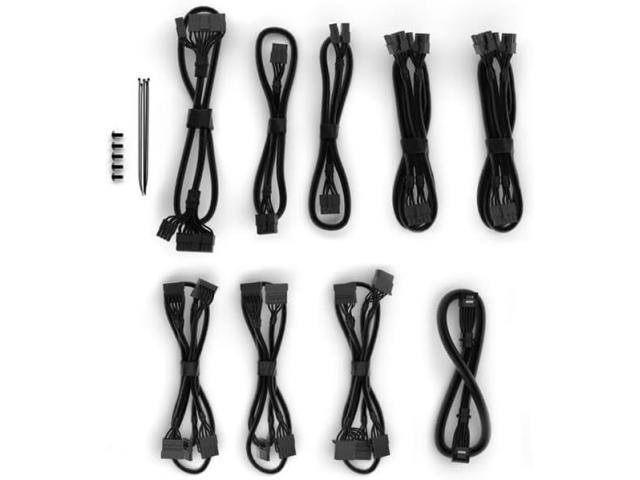

Cables and connectors
Modular cables yes
Sleeved cables yes
Flat cables -
Maximum cable length (cm) 100
Cable length to motherboard (cm) 60
No. of cables 9
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12V-2x6 cables 1
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) -
SATA 9
PATA 2
FDD (Floppy) -


Scope of delivery
Thumb screws -
Screws yes
Cable ties yes
Velcro cable ties -
User manual
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -


Casing
Dimensions without cable (L x W x H), (mm) 160 x 150 x 86
Weight (kg) 1.81
Color Black

Article number BN515
