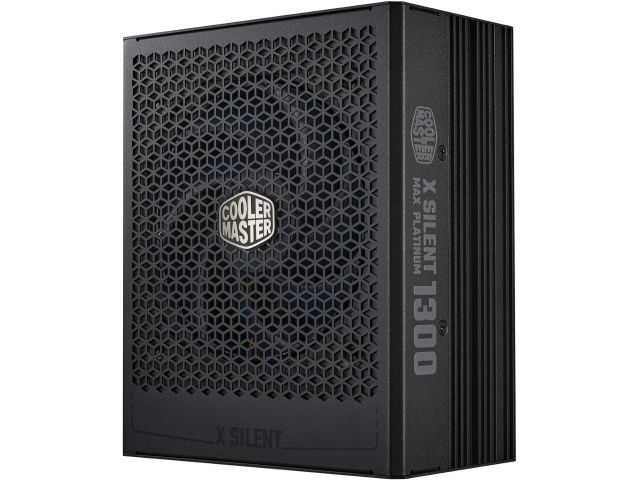

X Silent MAX Platinum 1300

Introducing the X Silent MAX Platinum featuring an ultra- quiet Mobius fan with noise levels under 25dBA, an advanced aluminum thermal structure, 80 Plus Platinum efficiency, a smart thermal control mode, an active bridge rectifier, and a digital monitor powered by Cooler Master’s MasterCTRL software. With these features, the MAX provides precise and ultra-quiet power. The X Silent MAX Platinum also includes ATX 3.1 support, a durable 12V-2x6 cable, reliable, industrial-grade Infineon IC chips, a zero-RPM fan mode, fully modular cabling, high- quality Japanese capacitors. The X Silent MAX Platinum is the next frontier of silent, reliable, powerful performance.

Ultra-quiet Mobius fan:
The ultra-quiet Mobius fan features a lower fan speed that actively dissipates heat to support higher wattages while maintaining silent performance with an ambient noise level of only 25dBA.

Advanced aluminum thermal structure:
Implements an advanced aluminum thermal technology to enhance heat dissipation.

Advanced heat dissipation and thermal performance:
A patented aluminum thermal mold efficiently dissipates heat.

80 Plus Platinum efficiency certification:
This unit is certified to achieve more than 92% efficiency at typical loads.

Active bridge rectifier:
Bridge diodes have been replaced with an active bridge rectifier to improve performance.

ATX 3.1 support & a durable 12V-2x6 cable:
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 cable featuring lower temperatures, enhanced durability, and improved safety.

Digital monitor:
Cooler Master’s MasterCTRL software allows users to monitor temperature, current load, and overall performance.

Long-lasting reliability:
Built with Infineon industrial-grade IC chips for high quality performance and long-lasting reliability.

Smart thermal control mode:
Fan speed is automatically adjusted according to the PSU’s operating temperature.

Silent fan performance with a zero-RPM mode:
This unit defaults to zero fan spin, providing silent fan performance.

Fully modular cabling:
Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.

High-quality Japanese capacitors:
Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.


Model MPS-D001-AFAP
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 100-240V
Input Current 15-7.1A
Input Frequency 50-60Hz
Dimensions (L x W x H) 180 x 150 x 86 mm
Fan Size 120mm
Fan Bearing LDB
Fan Speed 2050 RPM
Efficiency >= 92% @ Typical Load
80 PLUS Rating 80 PLUS Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100 - 150 ms
Hold Up Time >= 16ms
MTBF >100,000 Hours
Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Regulatory cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 16
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 4
12V-2x6 Connectors 1
USB 10P Connector 1
Series X Series
80 Plus Efficiency Platinum
Modular Fully Modular
Form Factor ATX
Watts 1300W
ATX Version ATX 3.1
Input Voltage Range Full Range
