G12 GC-850 Gold, Snaga 850 W, aktivni PFC, veličina ventilatora 120 mm, 24-pinski konektor 1, CPU 2, SATA 6, PCIe 4, Molex 3, AC Input 110-240, Form Factor ATX 12V, Efikasnost 80 Plus Gold, DIMENZIJE (mm) Visina 86, Duljina 140, Širina 150, Certifikati TUV, CB, CCC, BSMI, CE, FCC, cTUVus, RoHS, Energy Star, Sistemi zaštite OPP, OVP, OCP, SCP, Vrsta kabela Fiksni, MTBF 100.000 sati


G12 GC

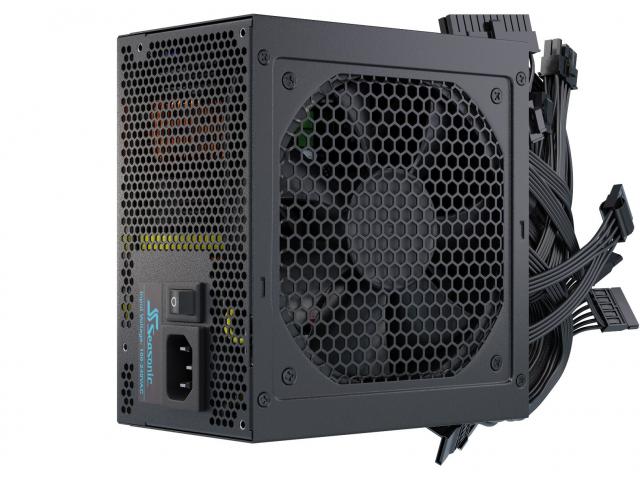

The G12 GC Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GC-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GC series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GC units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

ATX 12 V
Fixed cables
80 PLUS Gold Certified
5 Years Warranty
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)


G12-GC-850
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size 120 mm
Fan Control Smart and Silent Fan Control
Fan Bearing Sleeve Bearing
Life Expectancy 25,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity Fixed cables
Cable type Flat black cables

Electrical Features
Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, OCP, SCP

Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 5 Years


Power Output

AC Input
Voltage: 100 V - 240 V
Current: 10 A Max.
Frequency: 50 Hz - 60 Hz

DC Output
Rail/Maximum Power +3.3 V/15 A/100 W +5 V/15 A/100 W +12 V/70 A/840 W -12 V0.3 A/3.6 W +5 VSB/2.5 A/12.5 W
Total continuous power 850 W

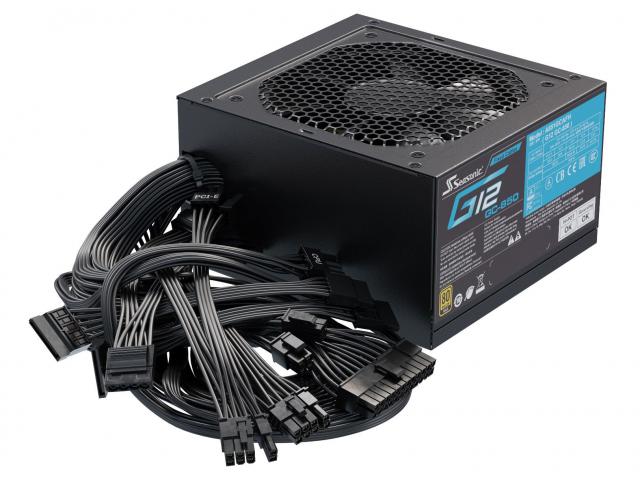

CABLES
Cable type/Connector(s) per cable/Total length (mm)/Number(s) of cable(s) included
MB (24/20 pins) 1 550 1
CPU (4/8 pins) 1 600 2
PCIe (8/6 pins) 1 550 3
SATA 3 690 2
Molex 3 690 1
