SS-650GB, 650 W, aktivni PFC, Hlađenje ventilator 120mm, 24-pinski konektor 1, ATX12V 1, SATA 6, FDD 1, PCIe 4, Molex 3, 110 V - 240 V, ATX, 80+ Bronze, 140 mm (L) x 150 mm (W) x 86 mm (H), OPP, OVP, UVP, SCP, Vrsta kablova Fiksni, 100,000 hours, cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick

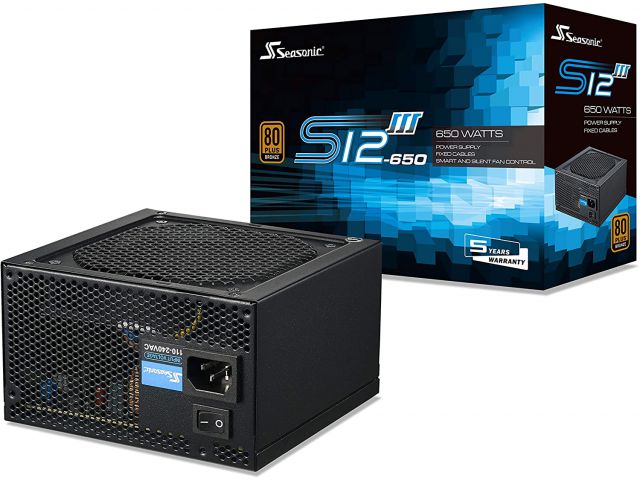

S12III SERIES
The S12III Bronze Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic S12III-Series achieves 80 PLUS® Bronze standard of providing at least 82 %, 85 % and 82 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the S12III Bronze series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the S12III units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

ATX 12 V
Fixed cables
80 PLUS Bronze Certified
5 Years Warranty
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)


SSR-650GB3
Technical Specifications

80PLUS® Bronze
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size 120 mm
Fan Control Seasonic S2FC
Fan Bearing Sleeve bearing
Life Expectancy 30,000 hours at 40 °C, 15 % - 65 % RH

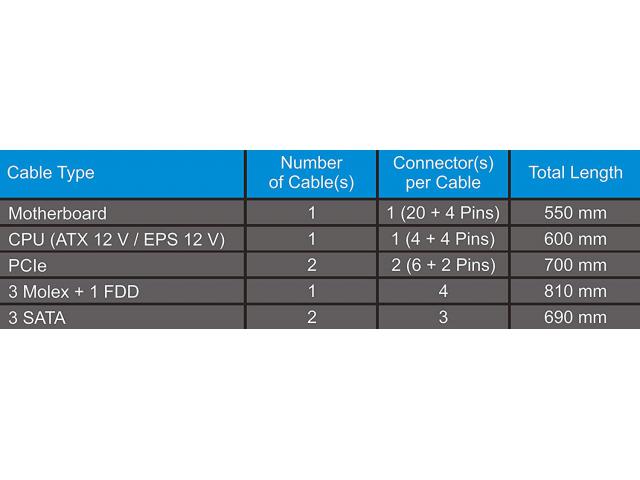

Cable Information

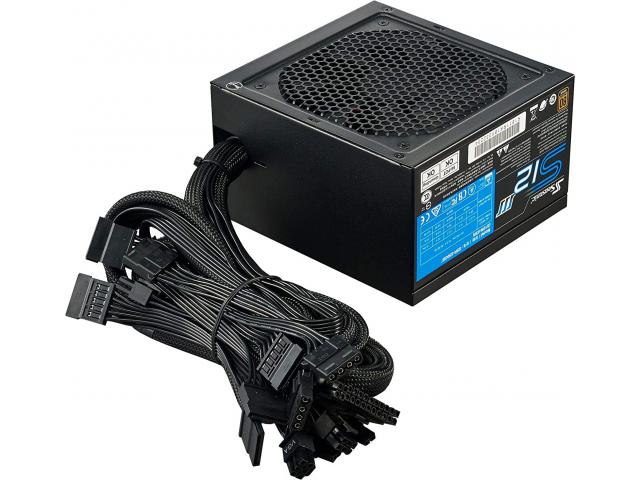

Modularity Fixed cable
Cable type Flat black cables

Electrical Features
Operating Temperature 40 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, SCP

Safety and Environmental
Safety and EMC cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
Environmental Compliance Energy Star, RoHS, WEEE, REACH


Power Output

AC Input
Voltage: 110 V - 240 V
Current: 10 A - 5 A
Frequency: 50 Hz - 60 Hz

DC Output
Rail/Maximum Power +3.3 V/20 A/100 W; +5 V/20 A/100 W; +12 V/54 A/648 W; -12 V/0.3 A/3.6 W; +5 VSB/2.5 A/12.5 W
Total continuous power 650 W
