Opis

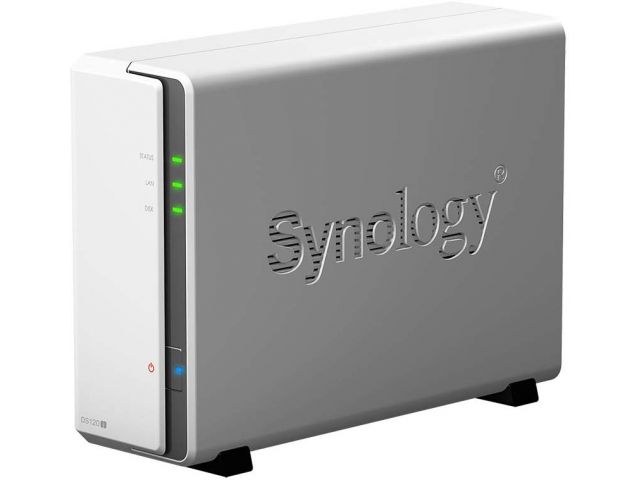

Synology DS120j
CPU: Marvell A3700 dual-core 800MHz
Memory: 512 MB DDR3L
Internal HDD: 1 x 3.5" or 2.5" SATA HDD (drive not included)
External Port: 2 x USB 2.0 port
LAN: 1 x Gigabit (RJ-45)
Wake on LAN/WAN
Maximum IP cameras: 5 (total of 150 FPS at 720p, H.264) (includes two free camera licenses)


- Your personal cloud solution for effortless data management

AN IDEAL FIRST NAS FOR EVERYONE
- DS120j is a centralized storage solution that allows you to share family photos and videos to all household devices, such as computers and mobile phones

SEAMLESS INTEGRATION WITH YOUR MOBILE DEVICES
- Synology mobile applications are designed to allow quick and secure access to your data wherever you are

CENTRALIZED BACKUP SOLUTION FOR YOUR DIGITAL DEVICES
- Synologys comprehensive multi-version backup solution protects your digital assets on computers (Windows/Mac) and mobile phones (Android/iOS) against malicious attacks, including the rising encryption-based ransomware threats

EASY FILE ACCESS WITH QUICKCONNECT
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings
- QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on any Internet-connected device with no additional charge

POWERED BY SYNOLOGY DSM
- File Server/Management: Powerful built-in file management and sharing services
- Multimedia: Complete multimedia solution for management, streaming, and playback
- Hyper Backup: Store multiple backup versions with block-level incremental data backup and cross-version deduplication
- DSM UI: Award-winning operating system with an intuitive user interface and powerful capabilities
- Security: Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats
- All-in-one server: Save additional investment by integrating various network services, web/mail services, management applications into your NAS

HARDWARE SPECIFICATIONS
CPU
- CPU Model: Marvell Armada 3700 88F3720
- CPU Architecture: 64-bit
- CPU Frequency: Dual Core 800 MHz
- Hardware Encryption Engine: Yes

MEMORY
- System Memory: 512 MB DDR3L

STORAGE
- Drive Bays: 1
- Compatible Drive Type:
* 3.5" SATA HDD
* 2.5" SATA HDD (with optional 2.5" Disk Holder)
- Maximum Internal Raw Capacity: 16TB (16TB drive ×1) (Capacity may vary by RAID types)
- Maximum Single Volume Size: 108TB

EXTERNAL PORTS
- RJ-45 1GbE LAN Port: 1
- USB 2.0 Port: 2

FILE SYSTEM
- Internal Drives: EXT4
- External Drives: EXT4, EXT3, FAT, NTFS, HFS+, exFAT
* exFAT Access is purchased separately in Package Center

APPEARANCE
- Size (H×W×D): 166×71×224 mm
- Weight: 0.7 kg

OTHERS
- System Fan: 60×60 mm ×1 pcs
- Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode, Low-power Mode
- Power Recovery: Yes
- Noise Level: 16.9 dB(A)
- Scheduled Power On / Off: Yes
- Wake on LAN / WAN: Yes
- Power Supply Unit / Adapter: 36 W
- AC Input Power Voltage: 100 V to 240 V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
* 9.81 W (Access)
* 4.68 W (HDD Hibernation)
- British Thermal Unit:
* 33.47 BTU/hr (Access)
* 15.97 BTU/hr (HDD Hibernation)

TEMPERATURE
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH

CERTIFICATION
- FCC, CE, EAC, BSMI, VCCI, CCC, RCM, KC

ENVIRONMENT
- RoHS Compliant

PACKAGING CONTENT
1× Main Unit
1× Accessory Pack
1× AC Power Adapter
1× RJ-45 LAN Cable
1× Quick Installation Guide

OPTIONAL ACCESSORIES
- Surveillance Device License Pack
- VS360HD
- VS960HD
- Disk Holder: Type C

DSM SPECIFICATIONS
STORAGE MANAGEMENT
- Maximum Internal Volume Number: 1
- Maximum iSCSI Target Number: 10
- Maximum iSCSI LUN: 10
- SSD TRIM: Yes
- Supported RAID Type: Basic

FILE SERVICES
- File Protocol: CIFS/AFP/NFS/FTP/WebDAV
- Maximum Concurrent CIFS/AFP/FTP Connections: 50
- Windows Access Control List (ACL) Integration: Yes
- NFS Kerberos Authentication: Yes

ACCOUNT & SHARED FOLDER
- Maximum Local User Accounts: 512
- Maximum Local Groups: 128
- Maximum Shared Folder: 256
- Maximum Shared Folder Sync Tasks: 2

LOG CENTER
- Syslog Events per Second: 50

GENERAL SPECIFICATIONS
- Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Supported Browsers:
* Chrome
* Firefox
* Edge
* Internet Explorer 10 onwards
* Safari 10 onwards
* Safari (iOS 10 onwards)
* Chrome (Android 6.0 onwards)

ADD-ON PACKAGES
DOWNLOAD STATION
- Maximum Concurrent Download Tasks: 50

exFAT ACCESS (OPTIONAL)
- Yes

MEDIA SERVER
- DLNA Compliance: Yes

SURVEILLANCE STATION
- Maximum IP cam (Licenses required): 5 (including 2 Free License)
- Total FPS (H.264):
* 150 FPS @ 720p (1280x720)
* 120 FPS @ 1080p (1920x1080)
* 70 FPS @ 3M (2048x1536)
* 40 FPS @ 5M (2591x1944)
* 20 FPS @ 4K (3840x2160)
- Total FPS (H.265):
* 150 FPS @ 720p (1280x720)
* 150 FPS @ 1080p (1920x1080)
* 130 FPS @ 3M (2048x1536)
* 65 FPS @ 5M (2591x1944)
* 30 FPS @ 4K (3840x2160)
- Total FPS (MJPEG):
* 50 FPS @ 720p (1280x720)
* 50 FPS @ 1080p (1920x1080)
* 40 FPS @ 3M (2048x1536)
* 40 FPS @ 5M (2591x1944)

SYNOLOGY DRIVE
- Recommended Number of Hosted Files: 10.000 (applies to files indexed or hosted by Synology Drive
* For file access through other standard protocols, refer to the File Services section above)
- Recommended Number of Concurrent Sync Clients: 5 (the number of connections that can be maintained when the recommended number of hosted files was reached)

VIDEO STATION
- Video Transcoding: Group 2

VPN SERVER
- Maximum Connections: 10
