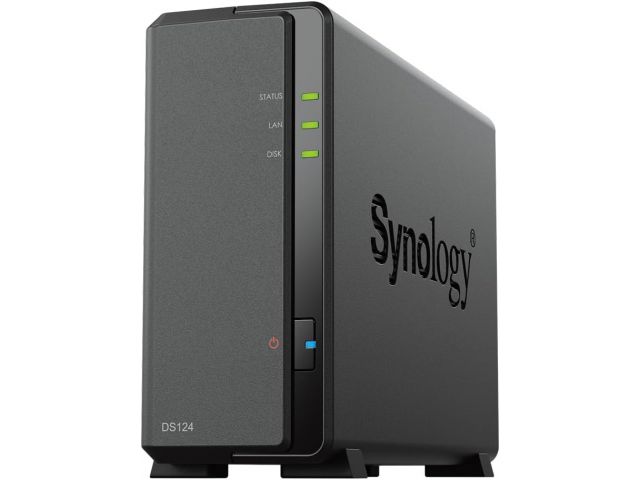

DiskStation® DS124
Smooth data management in a mini form factor

Take command of your most important data

Secure private cloud
Anywhere, anytime secure access to all your data.

Data sharing made easy
Streamline teamwork and access to shared files.

Hassle-free backups
Effortlessly protect files using intuitive tools.


Mini Data Management Hub
Bring scattered data under control with the DS124, a super compact data hub that empowers effortless data centralization, organization, and sharing. License-free solutions in Synology DiskStation Manager (DSM) allow you to establish a secure private cloud, conveniently access files from any device, and collaborate seamlessly with partners or clients.

Centralized Data Hub
Consolidate all your data with complete data ownership and multi-platform access

Seamless Sharing and Syncing
Sync and share data across devices and operating systems, enabling effortless collaboration

Built-in Data Protection
Back up your files to a variety of destinations

Smart Surveillance
Create a comprehensive video surveillance system that scales with your needs

, 1-bay NAS server, 2.5"/3.5" HDD/SSD podrška, Wake on LAN/WAN, 1GB, G-LAN, USB3.0

HARDWARE SPECIFICATIONS

CPU
CPU Model Realtek RTD1619B
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 1.7 GHz
Hardware Encryption Engine yes

Memory
System Memory 1 GB DDR4 non-ECC

Storage
Drive Bays 1
Compatible Drive Type
3.5" SATA HDD
2.5" SATA SSD (with optional 2.5" Disk Holder)
Hot Swappable Drive -
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

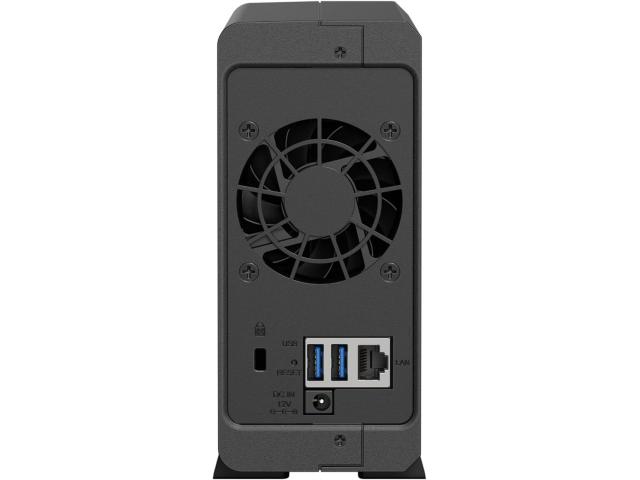

External Ports
RJ-45 1GbE LAN Port 1
USB 3.2 Gen 1 Port 2
Notes
This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

File System
Internal Drives
Btrfs
EXT4

External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT

Appearance
Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg

Others
System Fan 60 mm x 60 mm x 1 pcs

Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Low-power Mode

Brightness Adjustable Front LED Indicators yes
Power Recovery yes
Noise Level 19.0 dB(A)
Scheduled Power On / Off yes
Wake on LAN / WAN yes
Power Supply Unit / Adapter 36 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase

Power Consumption
10.69 W (Access)
3.44 W (HDD Hibernation)

British Thermal Unit
36.50 BTU/hr (Access)
11.75 BTU/hr (HDD Hibernation)

Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Relative Humidity 5% to 95% RH

Certification
FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC

Environment
RoHS Compliant

Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
