Specifications
HARDWARE FEATURES
- Interface:

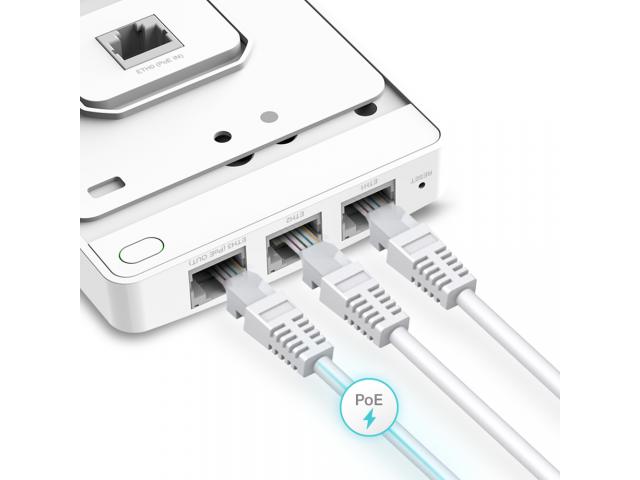

* Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
* Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
- Physical Security Lock: Yes
- Button: Reset
- Power Supply: 802.3af/802.3at PoE
- Power Consumption:
* 9.8 watts
* 24.4 watts with 13w PoE output
- Dimensions: 143 × 86 × 20 mm
- Antenna:
* 2.4 GHz: 2× 4 dBi
* 5 GHz: 2× 4 dBi
- Mounting: Wall Plate Mounting

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
* 5 GHz: Up to 867 Mbps
* 2.4 GHz: Up to 300 Mbps
- Wireless Functions:
* 16 SSIDs (Up to 8 SSIDs on each band)
* Enable/ disable SSID broadcast
* Automatic channel assignment
* Transmit power control (adjustable in 1 dBm step)
* QoS (WMM)
* Band steering
* Beamforming
* Load balance
* Rate limit
* Scheduled reboot
* Wireless scheduled on/off
* Wireless Statistics based on SSID, access point, or client
- Wireless Security:
* Captive portal authentication
* Access control list
* Wireless MAC address filtering
* Wireless isolation between clients
* SSID to VLAN Mapping
* LAN port-based VLAN
* Rogue AP detection
* 802.1X EAP support
* 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
- Transmission Power:
* 21 dBm (2.4 GHz)
* 21 dBm (5 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes
- Email Alerts: Yes
- LED ON/OFF Contro: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Local/ remote syslog
- SSH: Yes
- Web-based Management: HTTP/ HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
