- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Support Power over Ethernet(802.3at) for convenient and affordable installation
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Supports management VLAN for an enhanced network management

HARDWARE FEATURES

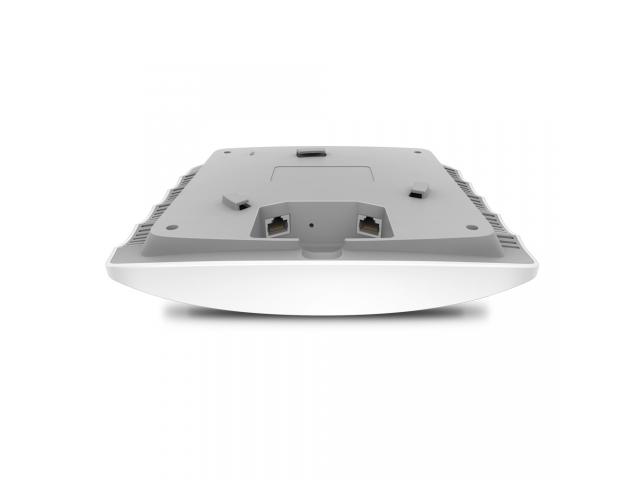

- Interface: Gigabit Ethernet (RJ-45) Port ×1(Support IEEE802.3at PoE)
- Button: Reset
- Power Supply: PoE or External 12VDC / 1.5A Power Supply
- Power Consumption: 12.7 W
- Dimensions (W×D×H): 180×180×47.5 mm
- Antenna Type:
* Internal Omni
* 2.4GHz: 3* 4dBi
* 5GHz: 3*4dBi
- Mounting: Ceiling /Wall Mounting (Kits included)
- Physical Security Lock: Kensington Lock Slot
- Hardware Watch Dog: Yes

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ac/n/g/b/a
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
* 5GHz: Up to 1300Mbps
* 2.4GHz: Up to 450Mbps
- Wireless Functions:
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS (WMM))
* Band Steering
* Load Balance
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
- Transmission Power:
* CE:
<19dBm (2.4GHz)
<23dBm (5GHz)
* FCC:
<25dBm (2.4GHz)
<27dBm (5GHz)

MANAGEMENT
- EAP Controller Software: Yes
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: Yes
- System Logging Local/Remote Syslog: Local/Remote Syslog
- Telnet: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS
- System Requirements: Microsoft Windows XP/Vista/7/8/10
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Package Contents:

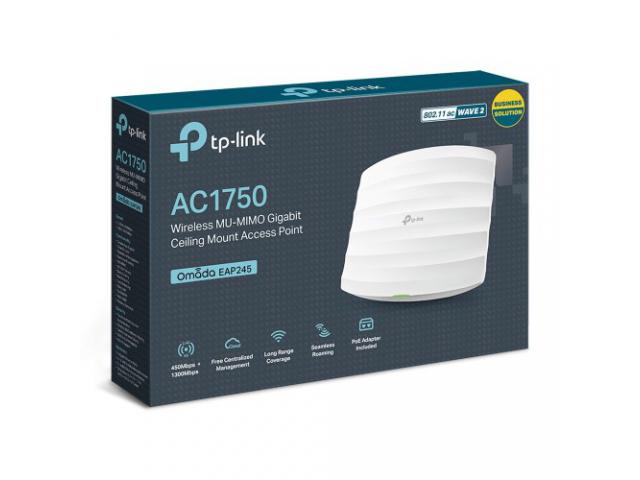

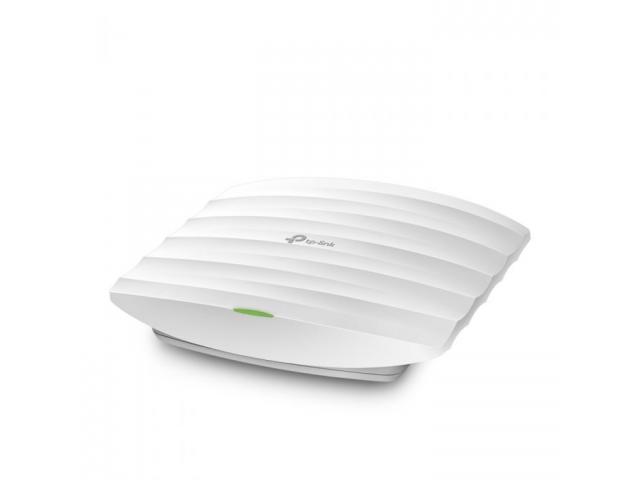

* AC1750 Wireless Dual Band Gigabit Access Point EAP245
* Power Adapter
* Mounting Kits
* Installation Guide
