STRONG, FAR-REACHING Wi-Fi
- AC1200 Wireless Dual Band Router

HIGH-SPEED DUAL BAND Wi-Fi FOR BETTER CONNECTIONS
- The Archer C50 lets your PC or laptop enjoy connections 3× faster than Wireless N with Wireless AC technology
- With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer C50 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks

INNOVATIVE ANTENNA DESIGN FOR MAXIMUM COVERAGE
- Four well-ordered antennas make all of your connections more efficient and stable
- Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home

EASY PARENTAL CONTROL
- Supervise children and staff with responsible access, controlled by parents or administrators
- Use key words to easily set up a black list and limit the level of web access

GUEST NETWORK ACCESS
- Allow guests to join your Wi-Fi network, while protecting your privacy
- Make sharing easy, maintain security

EFFICIENT GUEST AUTHENTICATION WITH FACEBOOK
- Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access
- Easily share your facebook account to anyone who connects to your network

Features
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point

Specifications
HARDWARE FEATURES

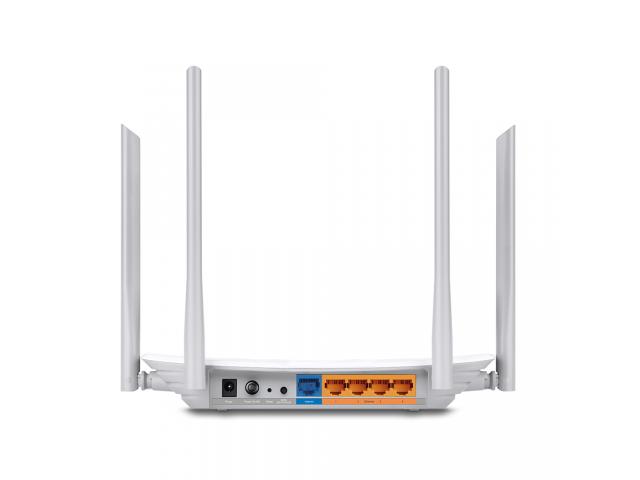

- Interface:
* 4× 10/100Mbps LAN Ports
* 1× 10/100Mbps WAN Port
- Button:
* Reset Button
* WPS/Wi-Fi On/Off Button
* Power On/Off Button
- External Power Supply: 9VDC / 0.85A
- Dimensions (W×D×H): 229.87×144.19×36.85 mm
- Antenna Type: 4 External Antennas

WIRELESS FEATURES
- Wireless Standards:
* IEEE 802.11n/g/b 2.4GHz
* IEEE 802.11ac/n/a 5GHz
- Frequency: 2.4GHz and 5GHz
- Signal Rate:
* 2.4GHz: Up to 300Mbps
* 5GHz: Up to 867Mbps
- Reception Sensitivity:
* 5GHz:
11a 54M: -73dBm
11ac VHT20 MCS8: -68dBm
11ac VHT40 MCS9: -64dBm
11ac VHT80 MCS9: -60dBm
* 2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71d
- Transmit Power:
* CE: <20dBm(2.4GHz), <23dBm(5GHz)
* FCC: <30dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES
- Quality of Service: WMM, Bandwidth Control
- WAN Type: Dynamic IP/Static IP/PPPoE/BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
- Management: Access Control, Local Management, Remote Management
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, Comexe, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec
- Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
- Firewall Security:
* DoS, SPI Firewall
* IP Address Filter/MAC Address Filter/Domain Filter
* IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network:
* 2.4GHz guest network ×1
* 5GHz guest network ×1

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
* AC1200 Wireless Dual Band Router Archer C50
* Power supply unit
* Ethernet Cable
* Quick Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
