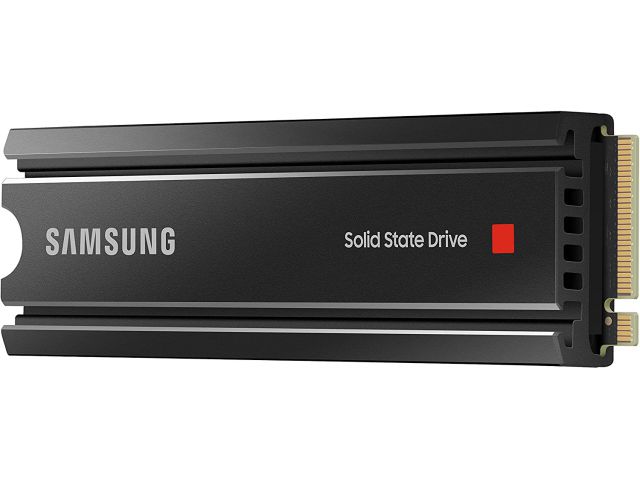

990 PRO with Heatsink NVMe M.2 SSD 2TB
MZ-V9P2T0CW

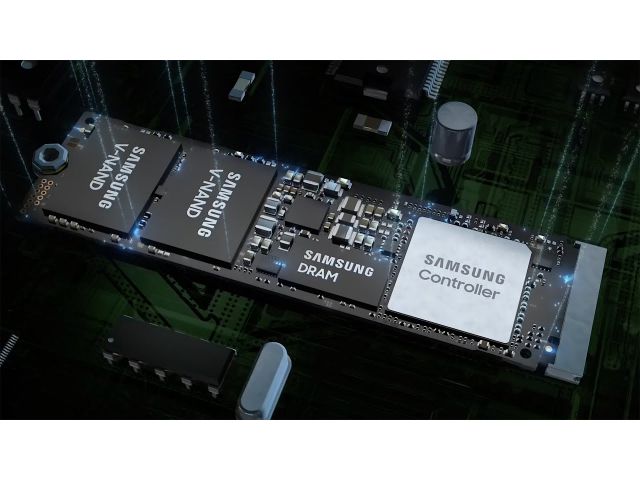

Samsung NVMe SSD powered by newly designed in-house controller
Up to 7450 / 6900 MB/s sequential read/write speed
Power efficient SSD, reliable thermal control, with heatsink


General Feature
Application Client PCs, Game Consoles
Capacity 2000GB (1GB=1 Billion byte by IDEMA)
Form Factor M.2 (2280)
Interface PCIe Gen 4.0 x4, NVMe 2.0
Dimension (Pack: WxHxD) 80 x 24.3 x 8.2 mm (with heatsink)
Weight Max 28.0g
Storage Memory Samsung V-NAND 3-bit MLC
Controller Samsung in-house Controller
Cache Memory Samsung 2GB Low Power DDR4 SDRAM

Special Feature
TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes

Performance
Sequential Read Up to 7450 MB/s
Sequential Write Up to 6900 MB/s
Random Read (4KB, QD32) Up to 1200000 IOPS
Random Write (4KB, QD32) Up to 1550000 IOPS
Random Read (4KB, QD1) Up to 22000 IOPS
Random Write (4KB, QD1) Up to 80000 IOPS

Environment
Average Power Consumption (system level) Average: 5.4 W; Maximum: 7.8 W (Burst mode)
Power consumption (Idle) Max. 50 mW
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ? Operating Temperature
Shock 1500 G & 0.5 ms (Half sine)

Accessories
Installation Kit Not Available

Software
Management SW Magician Software for SSD management

Warranty
5-Year Limited Warranty or1200 TBW Limited Warranty
