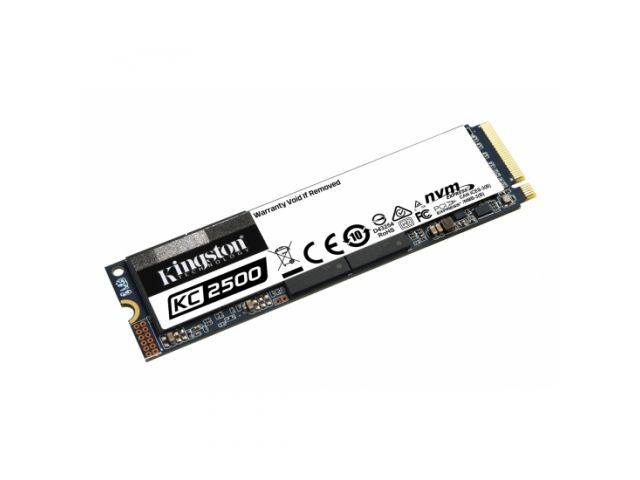

Kingston 250GB KC2500 SSD M.2 (2280), TCG Opal, NVMe, PCIe 3.0 (x4), 3500MB/s R, 1200MB/s W
Kingston’s KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds of up to 3500/2900MB/s, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstation and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.
Available in capacities from 250GB–2TB to meet your system’s needs. KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit hardware-based encryption and allows the use of independent software vendors with TCG Opal 2.0 security management solutions, such as Symantec™, McAfee™ and WinMagic®. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.
Form factor M.2 2280
Interface NVMe™ PCIe Gen 3.0 x 4 lanes
Controller SMI 2262EN
NAND 96-layer 3D TLC
Encrypted XTS-AES 256 bit
Sequential read/write up to 3,500/1,200MB/s
Random 4K read/write Up to 375,000/300,000 IOPS
Total Bytes Written (TBW) 150TBW
Power Consumption .003W idle / .2W avg / 2.1W (MAX) read / 7W (MAX) write
Storage temperature -40°C~85°C
Operating temperature 0°C~70°C
Vibration operating 2.17G peak (7-800Hz)
Vibration non-operating 20G peak (20-1000Hz)
