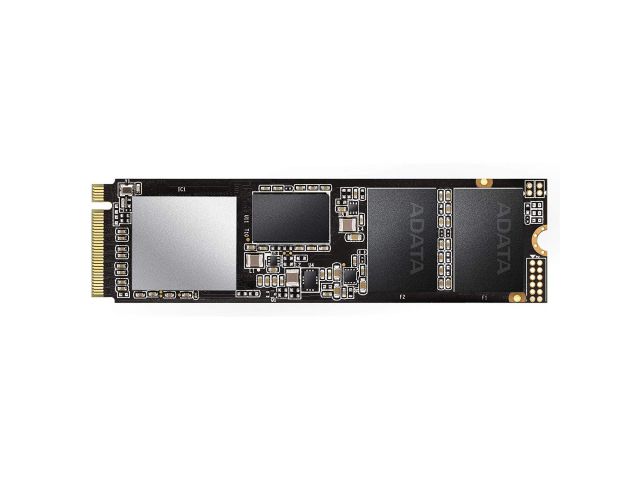

The SX8200 Pro M.2 2280 SSD is XPG’s fastest SSD to date and is designed for avid PC enthusiasts, gamers, and overclockers. It features an ultra-fast PCIe Gen3x4 interface that offers peak read/write speeds of 3500/3000MB per second (CDM (QD32)), outpacing SATA 6Gb/s by a wide margin. Supporting NVMe 1.3, the SX8200 Pro delivers excellent random read/write performance and multi-tasking capabilities. With SLC caching, a DRAM Cache buffer, E2E Data Protection, and LDPC ECC, it maintains high speeds and data integrity, even during highly intensive applications such as gaming rendering, and overclocking.
Form Factor M.2 2280
NAND Flash 3D TLC
Dimensions (L x W x H) 22 x 80 x 3.5 mm
Interface PCIe Gen3x4
Performance(Max) Read 3350MB/s , Write 2350MB/s
Maximum 4K random read/write IOPS : up to 390K/380K
* Performance may vary based on SSD capacity, host hardware and software, operating system, and other system variables.
Operating temperature 0°C - 70°C
Storage temperature - 40°C - 85°C
Shock resistance 1500G/0.5ms
MTBF 2,000,000 hours
