Opis

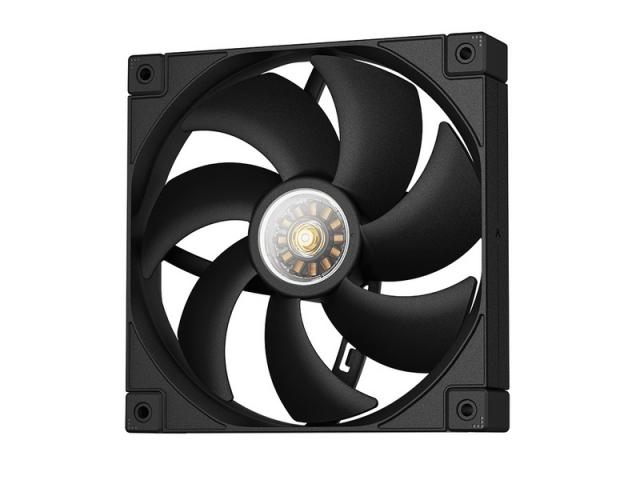

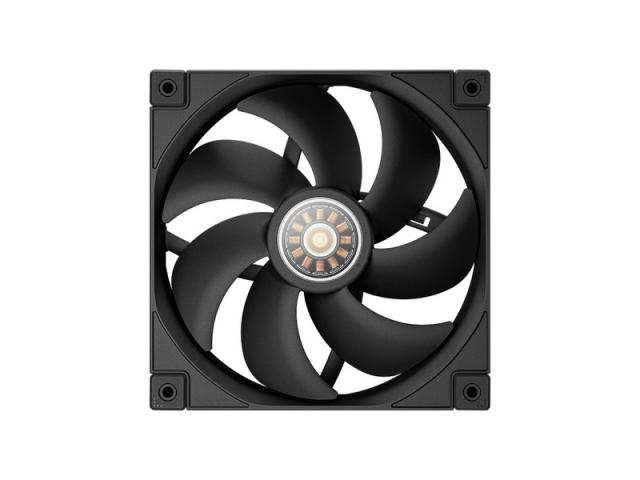

The FT14 140mm fans were meticulously designed by the DeepCool team to provide low-noise, high-performance cooling solutions with excellent durability.

ENGINEERING PERFECTION
Each FT14 140mm fan features a powerful 3-phase, 10-pole, 12-slot FOC closed-loop control motor with high-quality MQ magnets. A design combination rarely found in case fans that minimizes vibrations by reducing the force produced between wide gaps between poles and slots.

QUALITY YOU CAN SEE
Don't just believe the marketing pitch; each FT14 fan has a transparent window that showcases the high-quality engineering of the fan motor while putting the true Fluid Dynamic Bearing on display. Subtle white LEDs are positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.

ENHANCED MATERIALS
By utilizing an enhanced composite material made up of a fine mix of fiberglass and PBT, the fan blades and frame are extremely consistent, which also reduces the overall sound profile.

IMPRESSIVE IN MANY ASPECTS
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.

REDUCED VIBRATIONS
Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

SPECIFICATIONS
Fan Dimensions: 140×140×25 mm (L×W×H)
Net Weight: 206 g
Fan Speed: 500±200 RPM - 1650 RPM±10%
Fan Airflow: 78.83 CFM
Fan Air Pressure: 3.6 mmAq
Fan Noise: less than 25.1 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.15 - 0.45 A
Fan Power Consumption: 5.4 W
