MAGFLOW 120 MM 3-PACK

Thanks to the very innovative magnetic connection system, the installation of new MagFlow fans will be fast and effortless.

DAISY CHAIN DESIGN

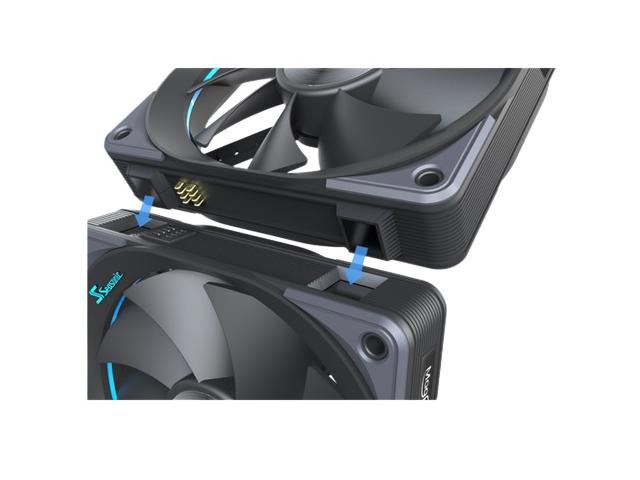

Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.

MODULARITY
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.

EASY INSTALLATION ON TOP OF THE RADIATOR
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.

CONSTRUCTION
The solid construction of the fan with Fluid Dynamic Bearing (FDB) is the result of a high precision manufacturing process that results in:
Small size FDB with high speed capability
Effective pressure field generation
Rotation stability and low vibration
Large volume air output
Long life expectancy


Model Name Seasonic MagFlow 1225 PWM
Model Number SF-12025MF-P
Dimensions 120.4 mm x 365.8 mm x 26.6 mm (3 x Daisy-chained fans)
Nominal Input Voltage 12 VDC
Rated Input Current 0.10 A
Startup Current 0.18 A (max.)
Rotational Speed 600'2000±10% RPM
Acoustical Noise 9.9'33.78 dBA
Air Flow 63.33 CFM (max.)
Air Pressure 2.61 mm-H20 (max.)
MTBF 100,000 hours
Bearing Type Fluid Dynamic Bearing
Fan Weight 212.7 g
