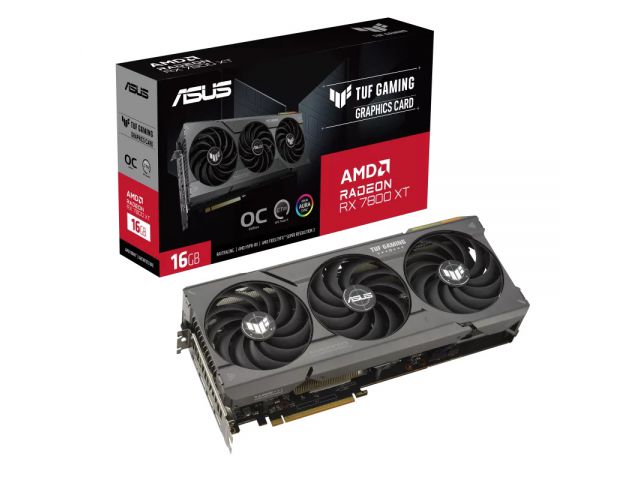

ASUS TUF Gaming Radeon™ RX 7800 XT OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability.
Axial-tech fans scaled up to deliver 24% more airflow
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring


Model TUF-RX7800XT-O16G-GAMING
Graphic Engine AMD Radeon™ RX 7800 XT
Bus Standard PCI Express 4.0
OpenGL OpenGL®4.6
Video Memory 16GB GDDR6

Engine Clock
OC mode : up to 2565 MHz (Boost Clock)/up to 2254 MHz (Game Clock)
Default mode : up to 2520 MHz (Boost Clock)/up to 2213 MHz (Game Clock)

Stream Processors 3840
Memory Speed 19.5 Gbps
Memory Interface 256-bit
Resolution Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)

Maximum Display Support 4
NVlink/ Crossfire Support No

Accessories
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual

Software ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions 319.8 x 150.9 x 59.2 mm
Recommended PSU 750W
Power Connectors 2 x 8-pin
Slot 2.96 Slot
AURA SYNC ARGB
