LIGHT BASE 900 FX White (BGW72)

Exceptional from every angle
Be prepared for virtually any PC component available and make Light Base 900 FX White with ARGB fans your creative show case.

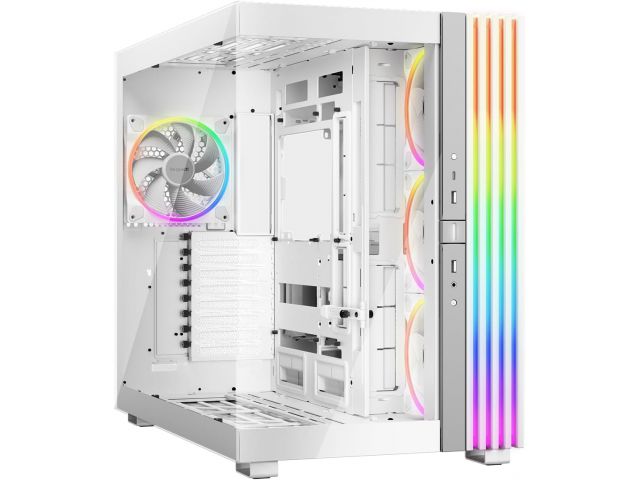

Fully windowed front and side panel for a stunning panoramic view on all your PC components
Impressive illumination from every angle with a massive ARGB LED strip
4 Light Wings 140mm PWM White fans for high airflow and quiet operation
Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
Extra spacious design for up to two 420mm radiators at the same time and an E-ATX motherboard
Support for motherboards with backside connector design

LOOK AT ME!
Panorama design for perfect visibility
You deserve to show off what you got. Large window panels on the front and the side allow you to watch your PC components at work anytime. This makes Light Base 900 FX White the perfect choice as your show case.

BRIGHT LIGHT
3 meters of LEDs
Light Base 900 FX White is predetermined for the big show. Nothing proves that more than the massive ARGB LED strip which is visible from all angles. The 3m long strip consists of 172 LEDs. With an included ARGB controller button and even more colors and modes with motherboard synchronization, you can make Light Base 900 FX White truly your own. Express yourself!

LED CASE FANS
Optimized fan blades for high airflow

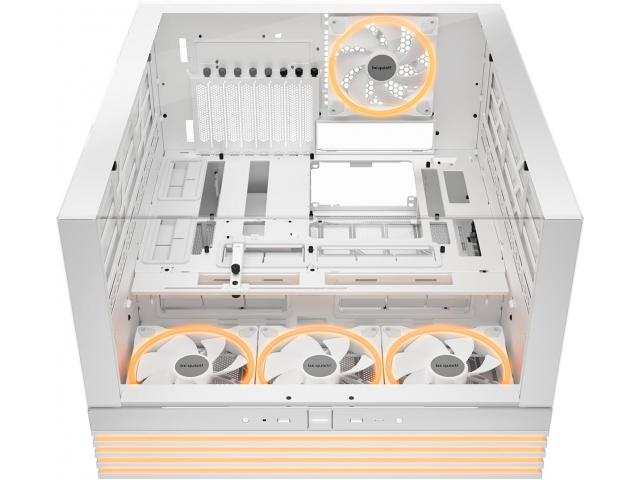

Light Base 900 FX White comes with 4 pre-installed Light Wings fans. One fan is installed as rear exhaust, 3 Light Wings 140mm PWM White fans with reversed fan blades are pre-installed on the side mounting. The reverse fans make sure your system is still an eye-catcher when installed as a side intake. Their 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that this fan provides the performance that is needed, even in demanding configurations.

UP, UP, DOWN, DOWN, LEFT, RIGHT, LEFT, RIGHT…
Change the layout in literal seconds
It takes longer to read this text than to invert Light Base 900 FX White. With its relocatable feet, you can invert the PC case literally in seconds. You can also choose a horizontal layout, which is executed just as quick. No matter which layout your gaming room requires: Light Base 900 FX White delivers.

MAKE IT YOUR CASE
Large dimensions for endless creativity
The 4 pre-installed fans can be expanded to up to 10 in total, making Light Base 900 FX White extremely versatile. With its extra spacious design, it can hold up to two 420mm radiators simultaneously, an E-ATX motherboard and even the most powerful graphics cards. Thanks to the two-chamber design, drives and cables are neatly tucked in the back and do not get in the
way of airflow.

MAXIMUM USABILITY
A new level of convenience
The detachable radiator and fan brackets in the top and bottom make installation of your cooling setup very easy. Each bracket fits a 420mm radiator. On top of that, you can install another radiator with up to 360mm length in the side, for a whopping 3 radiators. Additionally, Light Base 900 FX White comes with 2 ARGB and PWM hubs that offer 12 connectors in total. Their positions at the top and bottom allow you to conveniently connect
your hardware.

HOLD MY GPU
For a neat interior
Light Base 900 FX White features a flexible VGA holder that subtly prevents your GPU from sagging. The best part: This holder works in any orientation and with a horizontally or vertically installed graphics card. The result is a clean look even if you use big and heavy graphics cards.

ON THE FLIPSIDE...
Support for motherboards with backside connector design
The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view.


General data
Model Light Base 900 FX White
Color option White
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 532 x 327 x 465
Case size incl. stands (L x W x H), (mm) 532 x 327 x 484
Volume (l) 68
PSU form factor ATX PS/2
Net weight (kg) 16.8
Expansion slots 8

Pre-installed fans
Fan at side 3x Light Wings Reversed 140mm PWM White
Fan at rear 1x Light Wings 140mm PWM White
Dimensions (L x W x H), (mm) 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1500 / 1300
Airflow at 100% PWM / 12V (CFM / m3/h) 56.0 / 95.1 | 51.37 / 87.28
Air Pressure at 100% PWM / 12V (mm H2O) 1.49 / 1.1
Noise level at 100% PWM / 12V (dB(A)) 23.3 / 25.5
Voltage range (V DC) 5-13.2 / 5-12
Input power (W) 3.8 / 0.72
Input current (A) 0.32 / 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 60,000
Fan controller 2x 12 ports

Maximum fan installation
Maximum fans 10
Top (mm) 3x 140 / 3x 120
Side (mm) 3x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 3x 140 / 3x 120

Optional radiator installation
Top (mm) 120 / 140 / 240 / 280 / 360 / 420
Side (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140
Bottom (mm) 120 / 140 / 240 / 280 / 360 / 420

PSU compatibility
Maximum dimensions excl. bottom fan (mm) 225
Maximum dimensions incl. bottom fan (mm) 225

Graphics card
HDD cage (in height of graphics card) installed (mm) 495
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 4

Drive bay capacity
3.5 slots (scope of delivery) 1
3.5 slots (max.) 2
2.5 slots (scope of delivery) 4
2.5 slots (max.) 6

Cooling
Max.construction height of CPU cooler unit (mm) 190

Lighting
LED illumination yes
LEDs (pcs.) 172
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard yes

I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
HD Audio I/O Mic + Audio

Insulation and damping
Anti-vibration decoupled HDD yes
Anti-vibration decoupled fan yes
Anti-vibration decoupled PSU yes

Scope of delivery
Screw set (Drives/Motherboard) yes
Additional standoffs (pcs.) 1
Cable ties (pcs.) 12
VGA holder yes
VGA holder for inverted layout yes

Removeable dust filters
Top 1
Side 1
Bottom 1

Material
Top cover Steel
Front panel Glass
Side panel Steel
Side panel window Glass
Stands ABS

Safety certification
Approvals CE, UKCA

Environmental directives
RoHS yes
WEEE yes
Triman yes

Logistics data
Article number BGW72
Dimensions, package (L x W x H), (mm) 572 x 431 x 632
Gross weight, package (kg) 18.7
Pieces per packaging unit 1
