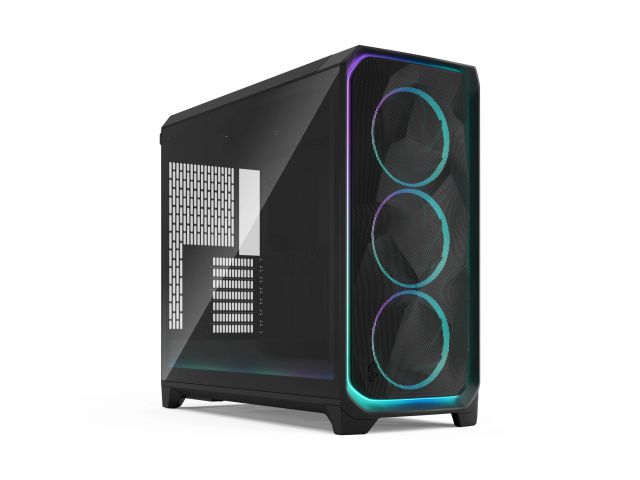

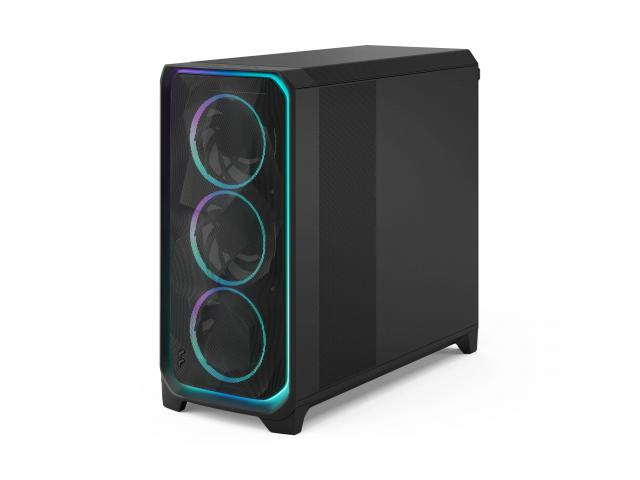

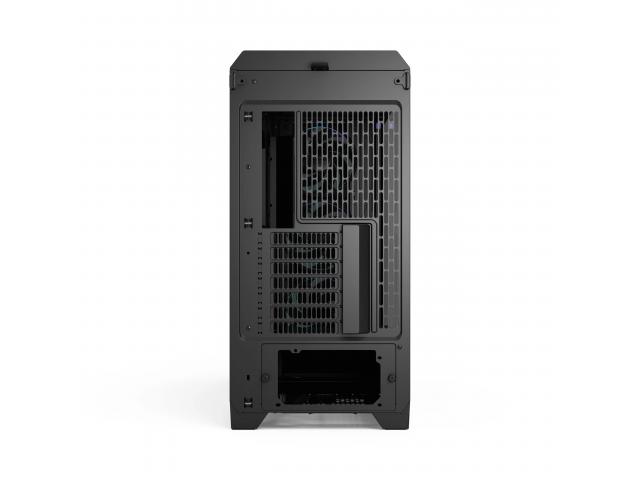

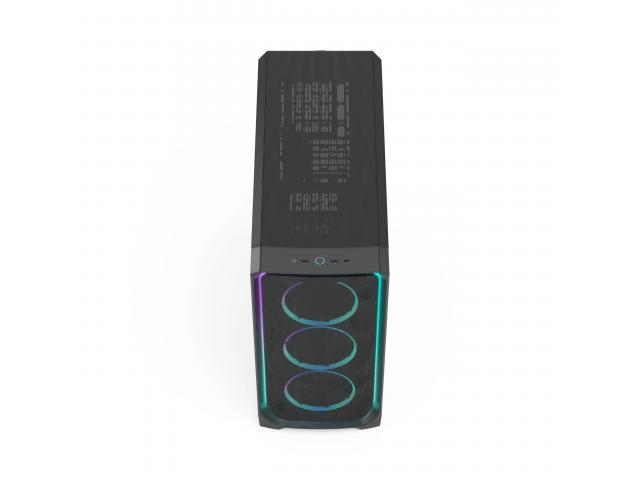

Meshify 3 XL
Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting.


Specifications
3.5"/2.5" drive mounts 2/4
Dedicated 2.5" drive mounts 1
5.25” drive mounts -
Expansion slots 7
Adjust Pro Hub
Ambience Case Lighting
Front interface 1 x USB Type-C 20 Gbps, 2 x USB Type-A 5 Gbps, 1x Audio Combo Jack, Power button
Total fan mounts 10 (140 mm) / 7 (120 mm)
Front fan 3x 120/140 mm, 2x 180 mm (3 x 140 mm Momentum Included)
Top fan 3x 120/140 mm
Rear fan 1x 120/140 mm
Bottom fan -
Side fan 3x 140 mm (no 120 support without radiator)
Dust filters PSU (Bottom)
Cable routing space 37.5 mm
Cable cover Yes
Cable organizers 3 Hook-and-loop straps + 3 Cable Aligners
Tool-less push-to-lock Both Side Panels, Bottom Filter, Front Panel, Top Panel
Captive thumbscrews Top Radiator Bracket, Air Guide, PSU Bracket
Left side panel Tempered Glass
Right side panel Industrial steel


Compatibility
Power supply type ATX
Motherboard compatibility E-ATX (330 mm) / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB
PSU max length 230 mm
GPU max length 512 mm
GPU max height 189 mm (7 slot) including cables
CPU cooler max height 182 mm
Front radiator 280/360 mm
Top radiator 360/420 (up to 475) mm
Rear radiator Up to 120/140 mm
Side radiator 360 mm (with brackets)


Dimensions
Case dimensions (LxWxH) 575 x 245 x 515 mm
Case dimensions w/o feet/protrusions/screws 565 x 245x 515
Package dimensions 596 x 350 x 550 mm
Net weight 11.4 kg
Gross weight 13.3 kg


Other
Package contents Case, Accessory Box, Manual, Red Note

Accessory Box content
PSU Screws x4, MB Screws x12, SSD screws M3 x20, Zip tie x5, HDD rubber x8, MB standoff x4, HDD screws x8, 500 mm Fractal Connect Cable x1, Legacy Splitter Cable

Product Code FD-C-MES3X-03
