O11 DYNAMIC EVO RGB
Introducing the all-new O11D EVO RGB, featuring dual ARGB light strips running through the top and bottom of the chassis,creating a stunning look. And the expanded internal space provides greater component compatibility, bringing an exceptional PC-building experience.

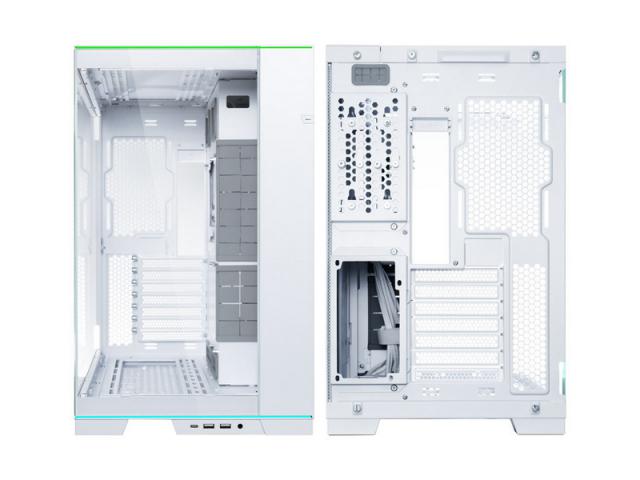

TWO COLORS/TWO MODES
Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with just a few simple steps, allowing for a left or right view. It also comes in two color options: Black and White.

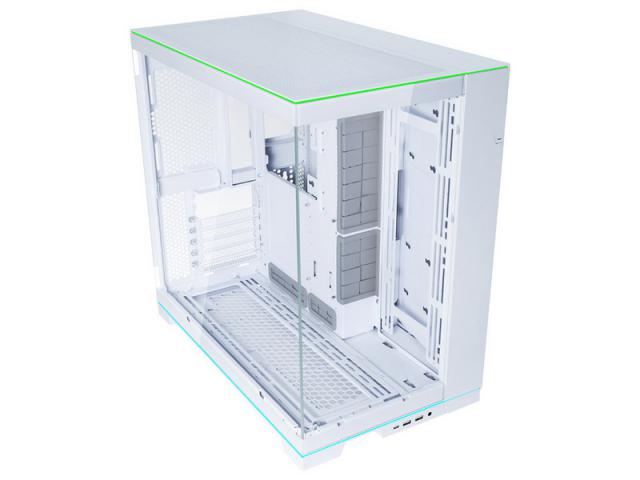

ARGB STRIPS ON THE TOP AND BOTTOM
The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip at both the top and bottom of the chassis that can switch between 14 different lighting effects, adjust brightness and color, and sync with the motherboard.
M: Next/Previous Light Mode Button: Press 3 seconds to sync MB, press 3 seconds again to cancel. Go back and forth between lighting effects without needing to circle around the loop.
C: Light Color Button: Switch between 11 colors, press 3 seconds to activate Pure Color Mode,press 3 seconds again to cancel.
B: Light Brightness Button: Switch between 5 brightness levels-100%, 75%, 50%, 25%,0%.

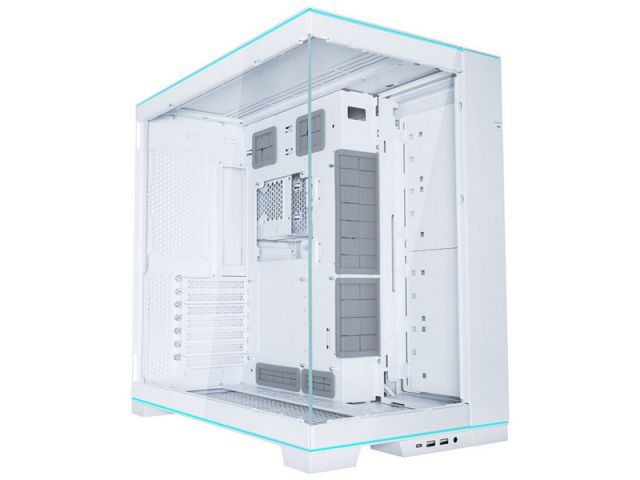

COMPLETELY UNOBSTRUCTED VIEW
The O11D EVO RGB’s front pillar can now be easily removed, providing a seamless view for showcasing hardware without affecting the case’s structure.

LARGER SIZE, HIGHER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator at the top (requires a separate bracket), 360mm radiator at the side/bottom, and 3x140mm fans at all three sides.

MODULAR DESIGN FLEXIBLE CONFIGURATION
Modularity has always been one of the design languages ??of the O11D EVO series, and the O11D EVO RGB is no exception. At the bottom of the chassis, the I/O module with a wealth of ports, can be relocated to 3 different locations without the use of any tools. In addition, we have a separate I/O module O11DE-3XV2/O11DE-3WV2 as an optional accessory to meet the needs of the users that require more I/O ports.

STRUGGLE-FREE FAN BRACKETS
Equipped with a quick-release design, the fan brackets of all three sides can be easily removed or installed. The side bracket can be flipped vertically or horizontally, offering 4 different installation styles. The distance between the left-sided and right-sided installation positions reaches 20mm, so users who use E-ATX motherboards can choose the right-sided installation to avoid the fans from being blocked by the motherboard while gaining more cable management space. Additionally, the O11D EVO RGB features a newly designed vertical corner grommet, making cable management friendlier even when using a large motherboard.

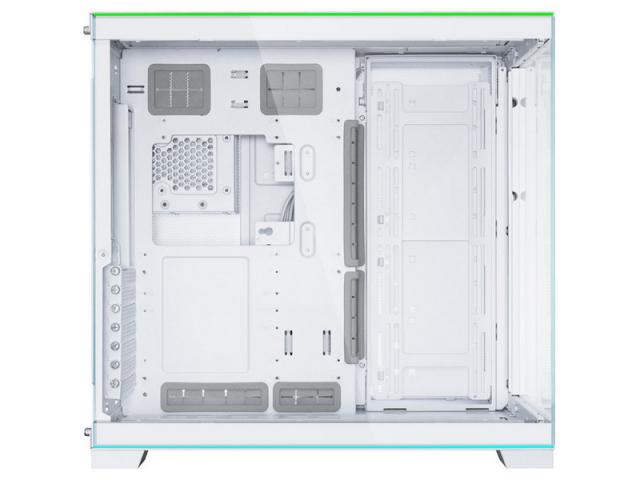

ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing the users to adjust the installation position of the motherboard to accommodate different builds.

CUSTOMIZED CABLE MANAGEMENT
O11D EVO RGB features an improved cable management design, featuring large VELCRO straps near the PSU chamber, dual-layer cable clips that can hold both the bulky and thinner cables, and 15mm of extended space from the rear of the PSU chamber for more cable management room. The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps with the management of rear I/O cables.

SPECIFICATIONS
CASE TYPE: Tower Chassis
COLOR: White
DIMENSIONS: (D)478mm × (W)290mm ×(H)471mm
MATERIAL: 4.0mm tempered glass, Aluminum, Steel
MOTHERBOARD SUPPORT: E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX
EXPANSION SLOT: 7
STORAGE : Side Fan Bracket:2 × 3.5” HDD or 4 × 2.5” SSD, Behind MB Tray: 2 × 2.5” SSD, Hard Drive Cage:2 × 3.5” HDD or 2.5” SSD
RADIATOR SUPPORT: Top: 240mm × 1 or 360mm × 1 or 420mm × 1, Side: 240mm × 1 or 280mm × 1 or 360mm × 1, Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1
FAN SUPPORT: Top: 120mm × 3 or 140mm × 3, Side: 120mm × 3 or 140mm × 3, Bottom: 120mm × 3 or 140mm × 3, Rear: 120mm × 1
GPU LENGTH CLEARANCE: 455.7mm(Max)
CPU COOLER HEIGHT CLEARANCE: 167mm(MAX)
PSU SUPPORT: ATX (Under 220mm)
I/O PORTS: USB 3.0 × 2, USB 3.1 TYPE-C × 1, Audio × 1, Color Button × 1, Mode Button × 1, Brightness Button × 1, Reset Button × 1, Power Button × 1
DUST FILTER: 1 × Bottom
