IB-1916M-C32
Enclosure for 1x NVMe with USB 3.2 (Gen 2x2) Type-C® and Type-A interface

ROBUST: A special aluminium alloy makes this enclosure very stable and protects it from external damage. Excellent heat dissipation is achieved through an elegant cooling fin design
NEW STANDARD: USB 3.2 (Gen 2x2) realises transfer rates of up to 20 Gbit/s. This corresponds to up to 2500 MB per second. This means your data is transferred super fast

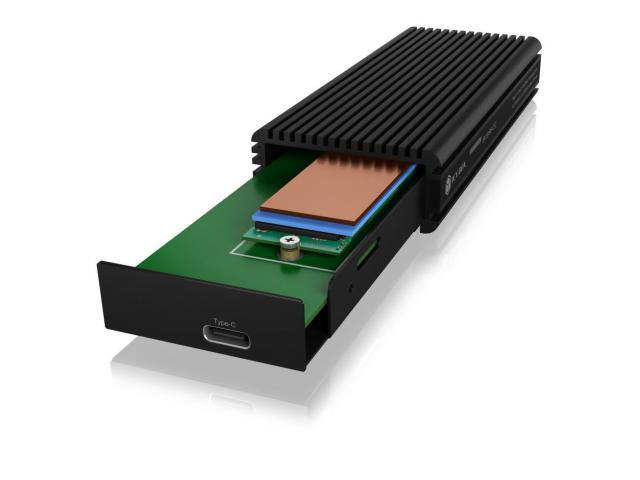

COOLING: The heat inside the heat sink is ideally conducted to the outside of the enclosure via the heat sink and the silicone heat pad. This keeps the NVMe SSD cool even under full load
EVERYTHING INCLUDED: The package contents of the external NVMe enclosure contain all the necessary cables to be prepared for any eventuality. No additional tools are needed to install the NVMe SSD
SPECIALISED: The external NVMe enclosure offers space for an NVMe with the dimensions 22x80 mm. Other common formats are not supported by this enclosure and cannot be installed

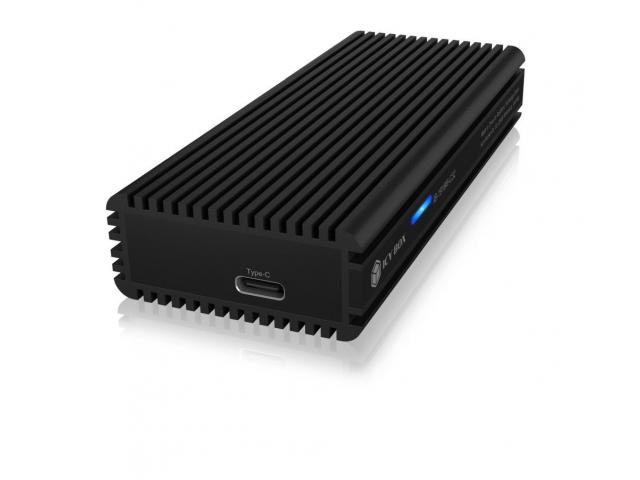

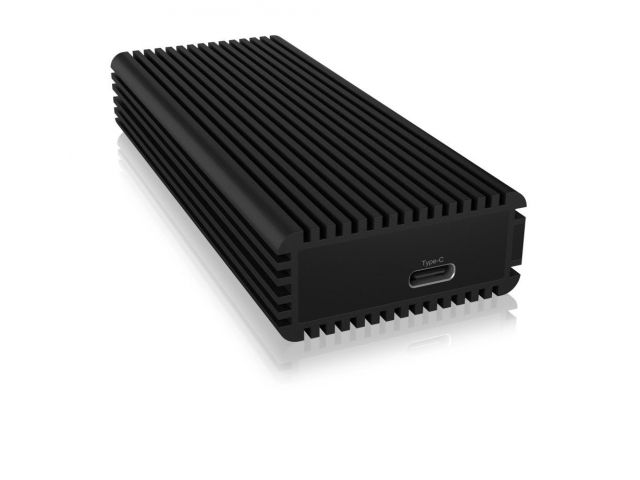

External USB Type-C® enclosure for M.2 NVMe SSD
Thanks to the external USB 3.2 Type-C® enclosure IB-1916M-C32 you can take one NVMe SSD with you easily enough. It allows access to M.2 SSDs of up to
2 TB no matter to which host you connect it. The IB-1916M-C32 is compatible with M.2 cards of 80 mm length, it is operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system.

Key features
High-grade aluminium enclosure with innovative heat sink design
PCIe 3.0 x4 data transfer rates of up to 20 Gbit per second
M-Key socket for M.2 NVMe SSDs, 22x 80 mm
Interface to host computer: USB 3.2 (Gen 2x2) Type-C®
Backwards compatible to USB 3.1/3.0/2.0
Including an additional copper heat sink and silicone thermal pad inside
Supports Windows®, macOS®

Packing content
1x IB-1916M-C32, 1x Type-C® to Type-C® cable, 1x Type-C® to Type-A cable, 1x screw driver, 1x screw for M.2 fixation, 1x acrylic side cover, 1x copper heat sink, 2x silicone thermal pad, 1x user manual


Colour Black
Material Aluminium, steel, acrylic
Interface to host computer USB 3.2 (Gen 2x2) Type-C®
Transfer rate Up to 20 Gbit/s
UASP support Yes
Length of cable 45 cm
Socket M.2 M-Key PCIe x4 (NVMe)
M.2 card size 22x 80 mm
M.2 interface PCIe x4 (NVMe)
Supported M.2 card keys M.2 PCIe 3.0 M-Key
SSD capacityUp to 2 TB
Plug & Play Yes
Cooling Passive
LED Power and access
Power supply Bus powered
Operating system
Windows®, macOS®



System requirements
The enclosure delivers the full data transfer rate of up to 20 Gbit/s only on USB 3.2 (Gen 2x2) host interfaces and an available Asmedia chipset ASM3242. Currently the USB 3.2 (Gen 2x2) standard is not supported by a macOS® based computer.
A USB Type-A host interface can be connected in some notebooks and PCs with USB 3.1, 3.0 or 2.0 and can also be used by connecting the included USB Type-C® to Type-A cable.
The enclosure will also work on devices with the Thunderbolt™ 3 interface at a transfer rate of up to 10 Gbit/s specified by USB 3.1 (Gen 2).
The following operating systems are generally supported: Windows® , macOS®
