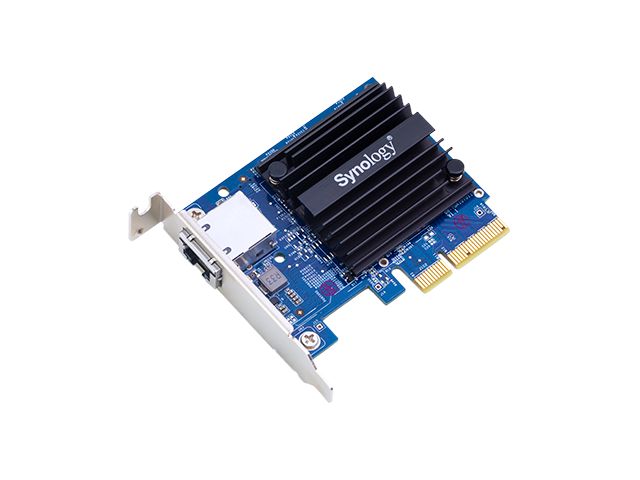

E10G18-T1
Single-port, high-speed 10GBASE-T/NBASE-T add-in card for Synology servers

Host Bus Interface PCIe 3.0 x4
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 86.0 mm x 68.1 mm x 13.6 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

IEEE Specification Compliance
IEEE 802.3x Flow Control
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
IEEE 802.3an 10Gbps Ethernet

Data Transfer Rates 10 Gbps
Network Operation Mode Full Duplex

Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s


Applied Models:
FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS1018, FS3410, FS2500
SA series:SA3600, SA3400, SA6400, SA3200D
UC series:UC3200
22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
20 series:RS820RP+, RS820+
19 series:RS1619xs+, RS1219+, DS2419+, DS2419+II, DS1819+
18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+
17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS3617xsII, DS1817+, DS1517+
16 series:RS18016xs+
15 series:RC18015xs+, DS3615xs
14 series:RS3614xs+, RS3614RPxs, RS3614xs
13 series:RS10613xs+, RS3413xs+
12 series:RS3412RPxs, RS3412xs, DS3612xs
11 series:RS3411RPxs, RS3411xs, DS3611xs
