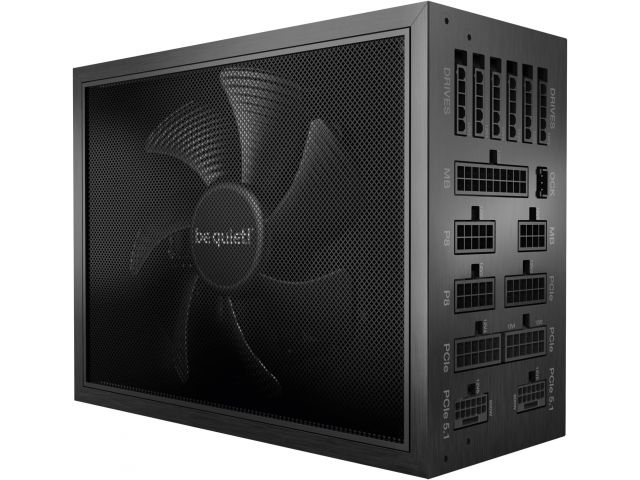

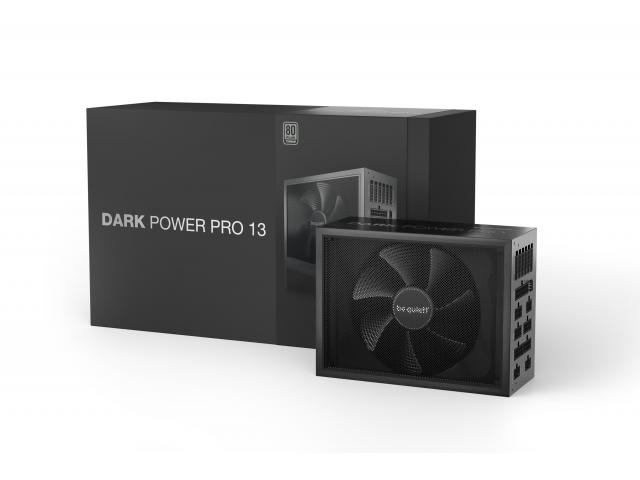

DARK POWER PRO 13
1600W

Cutting edge technologies and performance
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency, world-class performance and ATX 3.1 compliance for next-gen GPU compatibility.

80 PLUS Titanium efficiency (up to 94.5%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
Overclocking key switches between six 12V rails and one massive 12V rail
Aluminum case and modular individually sleeved cables for magnificent appearance


General data
Model Dark Power Pro 13 1600W
Continuous power (W) 1600
Peak power (W) 1700
Form factor Version 3.1
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled yes
Voltage (Vac) 115 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 9
Power factor at 100% load >0.99
Modern standby yes
Power consumption in standby (W) <0.06
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 50


Efficiency
80 PLUS certification Titanium
Efficiency (%) at 230V, 2% load 73.7
Efficiency (%) at 230V, 10% load 92.6
Efficiency (%) at 230V, 20% load 94.2
Efficiency (%) at 230V, 50% load 94.5
Efficiency (%) at 230V, 100% load 92.2


Fan and cooling technology
Cybenetics Noise Rating -
Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2600
dB(A) at 10% load 9.5
dB(A) at 20% load 9.6
dB(A) at 50% load 9.8
dB(A) at 100% load 31.1


Output
Multi-rail operation (12V rails) 6
12V single rail operation yes
Overclocking key yes
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 40
+12V2 (A) 40
+12V3 (A) 45
+12V4 (A) 45
+12V5 (A) 55
+12V6 (A) 55
-12V (A) 0.5
+5Vsb (A) 3.5
Max. combined power 12V (W) 1600
Max. combined power 12V-2x6 (W) 1000
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 18
Hold-up time at 80% load (ms) 21.3
Power good signal (ms) 100 - 150

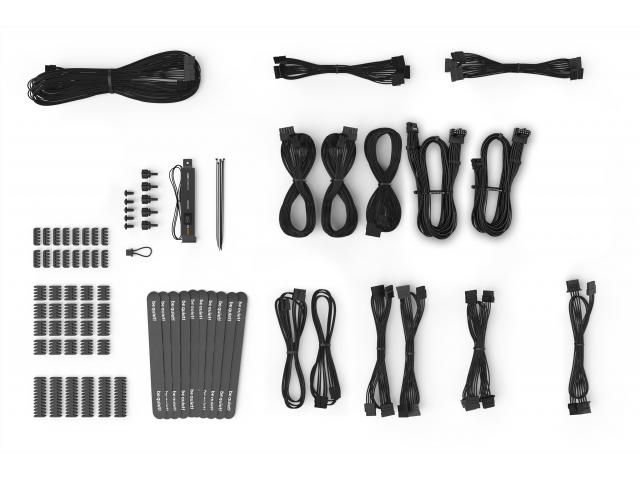

Cables and connectors
Modular cables yes
Sleeved cables yes
Flat cables -
Maximum cable length (cm) 105
Cable length to motherboard (cm) 60
No. of cables 16
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12V-2x6 cables 2
PCI-e 6+2-pin (GPU) 6
PCI-e 6-pin (GPU) -
SATA 16
PATA 5
FDD (Floppy) -


Protection
OTP (over temperature protection) yes
OCP (over current protection) yes
OPP (over power protection) yes
SCP (short circuit protection) yes
OVP (over Voltage protection) yes
UVP (under Voltage protection) yes
SIP (Surge & Inrush protection) yes


Safety certification
BSMI yes
CB yes
CCC yes
CE yes
cRUus -
cTUVus yes
CU yes
FCC yes
RCM yes
TÜV yes
UKCA yes
IRAM -


Environmental directives
Energy Star 8.0
ErP yes
WEEE yes
RoHS yes
Triman yes


Scope of delivery
Thumb screws yes
Screws yes
Cable ties yes
Velcro cable ties yes
User manual languages yes
OCK slot bracket with switch / OCK jumper yes
SFX-to-ATX adapter bracket -


Casing
Dimensions without cable (L x W x H), (mm) 200 x 150 x 86
Weight (kg) 2.44
Color Black


Article number BN332
