Šifra proizvoda: 189174

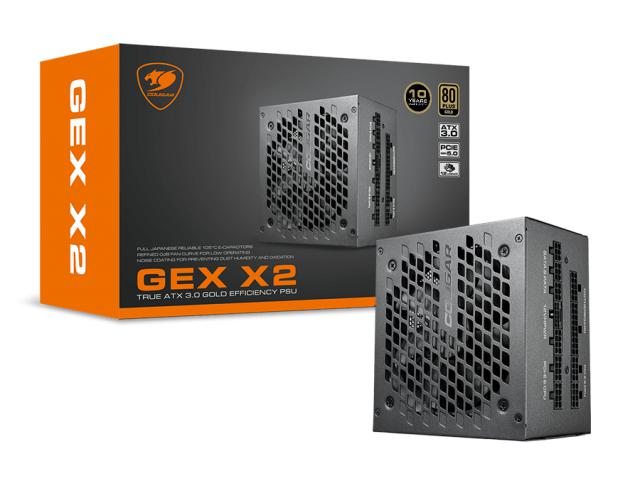

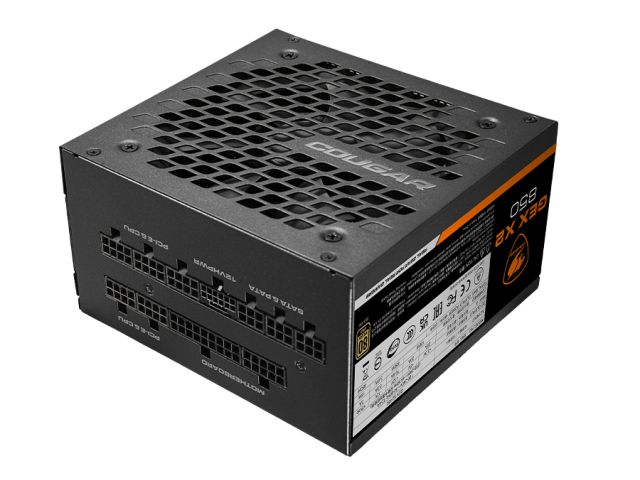

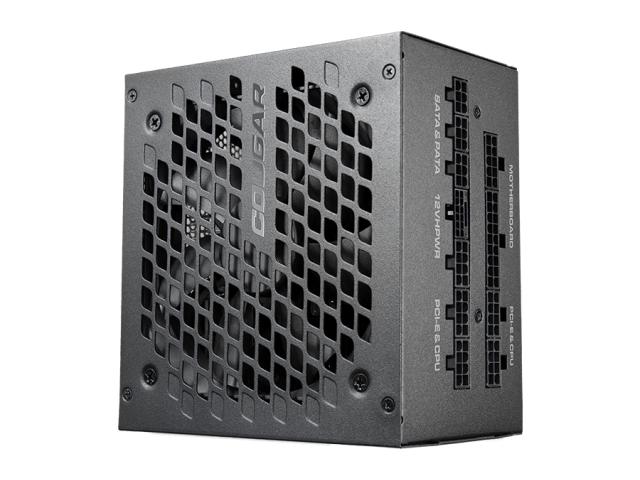

Napajanje COUGAR GEX X2 850, 850 W, PCIe Gen 5.0, modularno, 120 mm fan, 80+ Gold

Informacije o proizvodu
121,00
od 10,08 € / mj.Obračun rata Obračun rata

Jamstvo: 60 mjeseci

Obavijesti me kada artikl postane raspoloživ

  • Dostava
  • Plaćanje
  • Post-prodajna podrška
  • Opis
    GEX X2 850W

    The modular 12+4pin, 12VHPWR, cable delivers perfect power supplies for Nvidia® GeForce RTX® 40 Series graphics cards. Without any 6+2pin adaptor, the 650mm length can reduce connection risk while the PC installation.


    Features

    Support PCI Express 5.0 Graphics Cards 12+4 Pin Connector
    Connect the 12VHPWR with true 200% power excursion dynamic outputs

    Durable HDB Fan
    Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

    Fully Modular Power Supply Unit
    Connect only the cables you need for less clutter and better airflow

    Compatible with The Lastest PC Technology
    Created for user with current and next-generation multi-core CPU platforms

    80PLUS Gold Certified
    Up to 91% efficiency power conversion to cut down your electricity bill

    100% Refined Japanese Capacitors
    Outstanding components extend the longevity of PSU.

    Zero Noise Mode and Fan Curve Tuning
    Advanced technology for noise minimization

    Flawless Operation at 40°C
    Powerful performance at 40°C ambient temperature


    Specifications

    Model Name GEX X2 850
    AC Input AC100-240V~, 50-60Hz, 12-6A
    DC output +3.3V / +5V / +12V / -12V / +5Vsb / Total = 20A, 100W / 20A, 100W / 70.8A, 850W / 0.3A, 3.6W / 3A, 15W / 850W

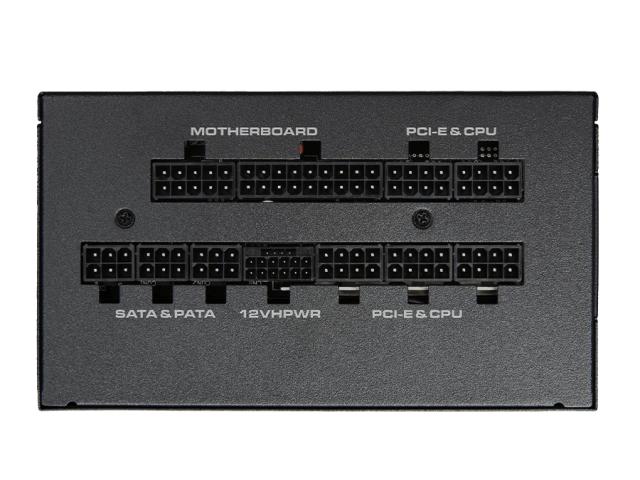

    Connector (Pins) Main 24(20+4) / CPU 8(4+4), 8 / Peripherals 4 / S-ATA 5 / 12VHPWR 12+4 / PCI-E 8(6+2) = 1 / 1, 1 / 2 / 10 / 1 / 3


    Product Number (P/N) 31GT085001P01
    Individual W/O Packaging Weight (N.Weight) 1.6 (Kg)
    Individual Size W/O Packaging (LxWxH) 140 x 150 x 86 (mm)


    Protection

    UVP (Under Voltage Protection)
    If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

    OCP (Overcurrent Protection)
    If the current on a single line is higher than indicated, the PSU automatically switches off.

    SCP (Short-Circuit Protection)
    In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

    OVP (Over Voltage Protection)
    If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

    OTP (Over Temperature Protection)
    If the temperature gets too high, the PSU automatically switches off.

    OPP (Over Power Protection)
    If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
  • Tehnička specifikacija
    Snaga napajanja (R) 850 W
    Efikasnost 80 PLUS (R) 80 Plus Gold
    Modularno (R) da
    Standard napajanja (R) ATX
    Osvjetljenje (R) ne
    Promjer ventilatora (R) 120 mm

Opis

GEX X2 850W

The modular 12+4pin, 12VHPWR, cable delivers perfect power supplies for Nvidia® GeForce RTX® 40 Series graphics cards. Without any 6+2pin adaptor, the 650mm length can reduce connection risk while the PC installation.


Features

Support PCI Express 5.0 Graphics Cards 12+4 Pin Connector
Connect the 12VHPWR with true 200% power excursion dynamic outputs

Durable HDB Fan
Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

Fully Modular Power Supply Unit
Connect only the cables you need for less clutter and better airflow

Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms

80PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill

100% Refined Japanese Capacitors
Outstanding components extend the longevity of PSU.

Zero Noise Mode and Fan Curve Tuning
Advanced technology for noise minimization

Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature


Specifications

Model Name GEX X2 850
AC Input AC100-240V~, 50-60Hz, 12-6A
DC output +3.3V / +5V / +12V / -12V / +5Vsb / Total = 20A, 100W / 20A, 100W / 70.8A, 850W / 0.3A, 3.6W / 3A, 15W / 850W

Connector (Pins) Main 24(20+4) / CPU 8(4+4), 8 / Peripherals 4 / S-ATA 5 / 12VHPWR 12+4 / PCI-E 8(6+2) = 1 / 1, 1 / 2 / 10 / 1 / 3


Product Number (P/N) 31GT085001P01
Individual W/O Packaging Weight (N.Weight) 1.6 (Kg)
Individual Size W/O Packaging (LxWxH) 140 x 150 x 86 (mm)


Protection

UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.

SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

OTP (Over Temperature Protection)
If the temperature gets too high, the PSU automatically switches off.

OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

Tehnička specifikacija

Snaga napajanja (R) 850 W
Efikasnost 80 PLUS (R) 80 Plus Gold
Modularno (R) da
Standard napajanja (R) ATX
Osvjetljenje (R) ne
Promjer ventilatora (R) 120 mm
