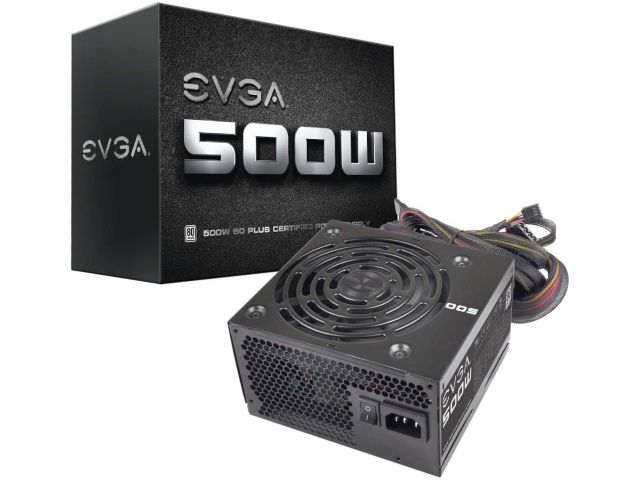

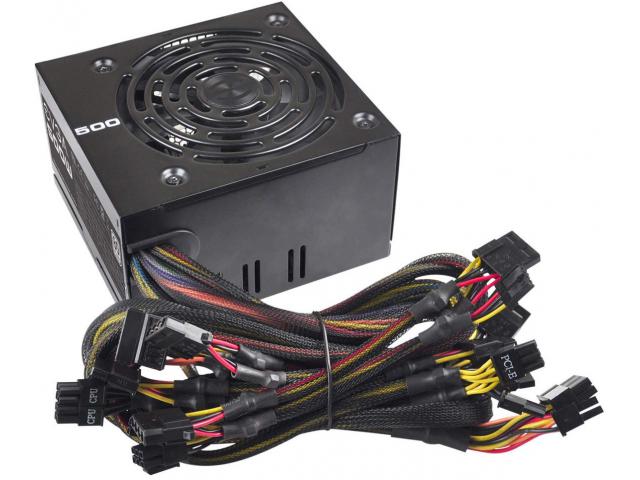

When building on a budget, the EVGA 500W 80 PLUS is a great choice at a low cost. Supporting 40A on a single +12V rail provides more options without having to reduce your component requirements. Save space with the 500W's compact design, well-placed power switch and fully sleeved cables. The 500W offers the connections and protections needed for basic system builds. With a standard 3 year warranty and ultra quiet fan design the 500W will be a great asset for your next build on a budget.

Features
3 Year Warranty
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Quiet and Intelligent Auto Fan for near-silent operation

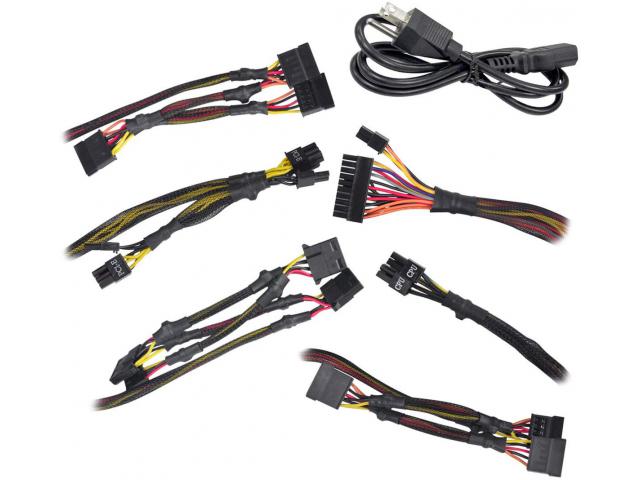

CABLE LENGTH
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm (f)
Floppy Adapter 1x 810mm
AC Power 1x 1200mm (m)
Modular Cable Type No

CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
SATA 6x
Four-Pin Peripheral 3x
Floppy 1x

INPUT
Input Voltage 100 - 240 VAC
AC Input 8-4A
Input Frequency Range 50 - 60 Hz
Efficiency 80% Typical

OUTPUT

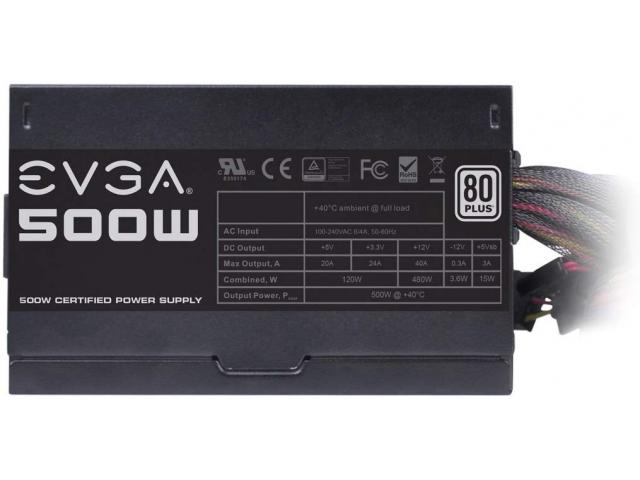

Rail/Max output +3.3V/24A/120W +5V/20A/120W +12V/40A/480W -12V/0.3A/3.6W +5Vsb/3A/15W
Total 500W @ +40C

ADDITIONAL DETAILS
Operating Temperature 0° to 40° C
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 3 lbs
Size 85mm (H) x 0mm (W) x 140mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing 120mm Sleeve Bearing
