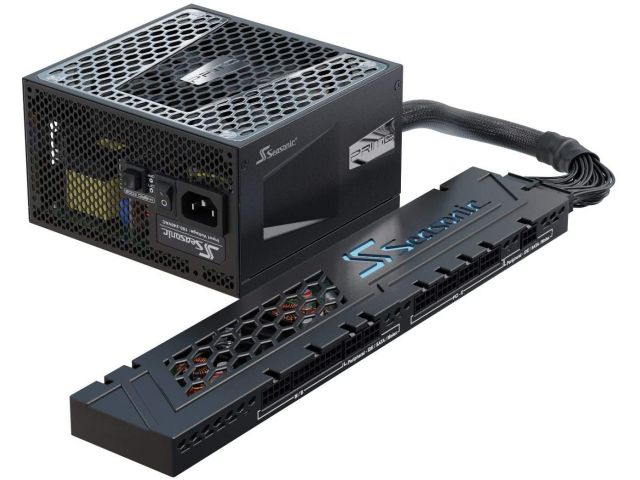

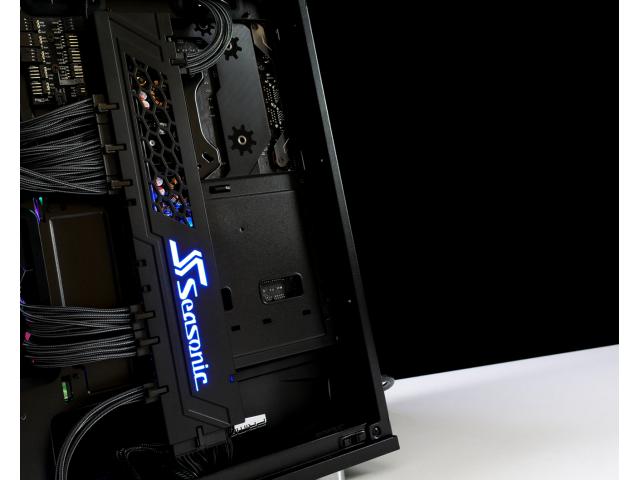

The Seasonic CONNECT is comprised of two linked products. One is the Seasonic PRIME 750 W 80 PLUS® Gold certified power supply, with our S3FC technology for efficient cooling and quiet operation. The other component is the CONNECT device, which is essentially a backplane that is mounted on the PC case with magnets to provide for the connections to all the components. During installation we only need to use two cables from the power supply to power the CONNECT. While the power supply itself supports the +12 V, -12 V and +5 Vsb rails, the CONNECT converts this power to provide the +3.3 V and +5 V outputs from the +12 V rail.

ATX 12 V
Fully Modular
80 PLUS Gold Certified

Dimensions:
PSU: 140 mm (L) x 150 mm (W) x 86 mm (H)
CONNECT MODULE: 330 mm (L) x 64 mm (W) x 21 mm (H)
REQUIRED SPACE: 330 mm (L) x 65 mm (W) x 28 mm (H)


SSR-750FA

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity Fully Modular
Cable type Flat black cables

Electrical Features
Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH


Power Output
AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz

DC Output
Rail/Maximum Power +3.3 V/20 A/100 W; +5 V/20 A/100 W; +12 V/62 A/744 W; -12 V/0.3 A/3.6 W; +5 VSB/3 A/15 W
Total continuous power 750 W
