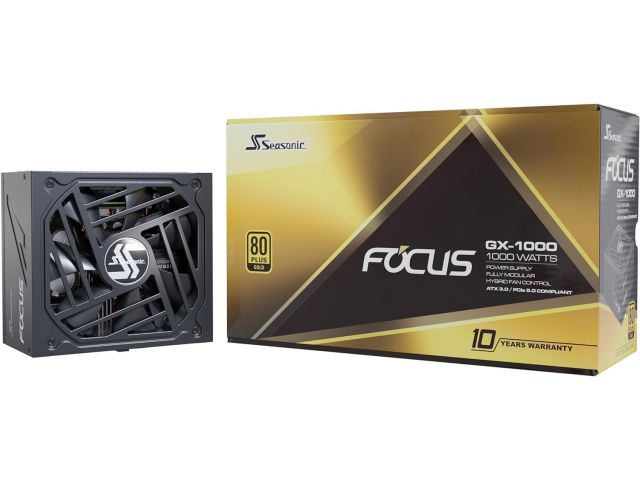

FOCUS GX ATX 3.0

Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging up to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.

ATX 12 V
ATX 3.0 and PCIe 5.0

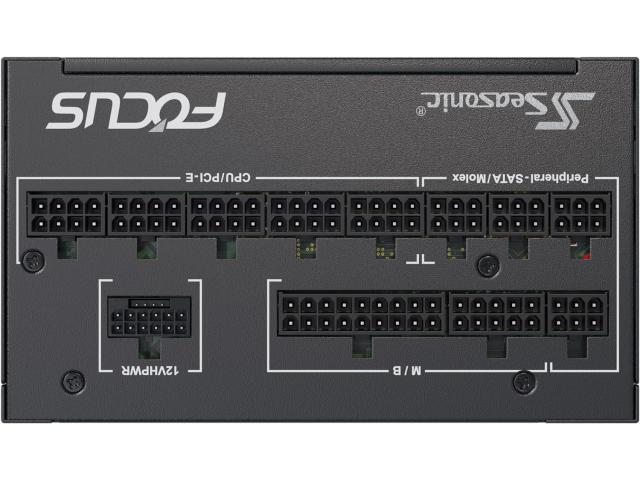

Full Modular
80 PLUS Gold Certified
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)


ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest FOCUS GX ATX 3.0 Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.


FEATURE SUMMARY
ATX 3.0 and PCIe 5.0 Cable (12VHPWR)
80 PLUS® Gold certified
Compact Size - 140 mm deep
Top-Quality 135 mm FDB Fan
Digital Hybrid Fan Control
S3FC - Fanless until 30 % load
Cable-free Connection Design
Tight Voltage Regulation
Gold plated connectors


ATX3-FOCUS-GX-1000

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level Gold
Cybenetics Noise Level Lambda A-
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size 135 mm
Fan Control S3FC - Fanless until 30 % load
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern

Electrical Features
Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH


Power Output

AC Input
Voltage: 100 V - 240 V
Current: 13 - 6.5 A
Frequency: 50 Hz - 60 Hz

DC Output
Rail +3.3 V; +5 V; +12 V; -12 V; +5 VSB
Maximum Power 25 A/125 W; 25 A/125 W; 83 A/996 W; 0.3 A/3.6 W; 3 A/15 W
Total continuous power 1000 W
