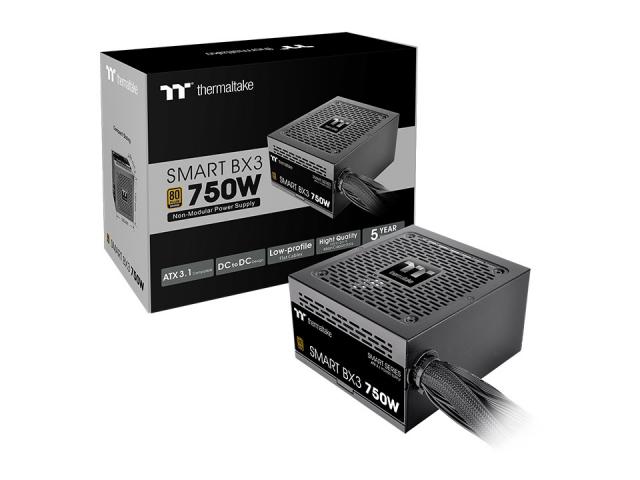

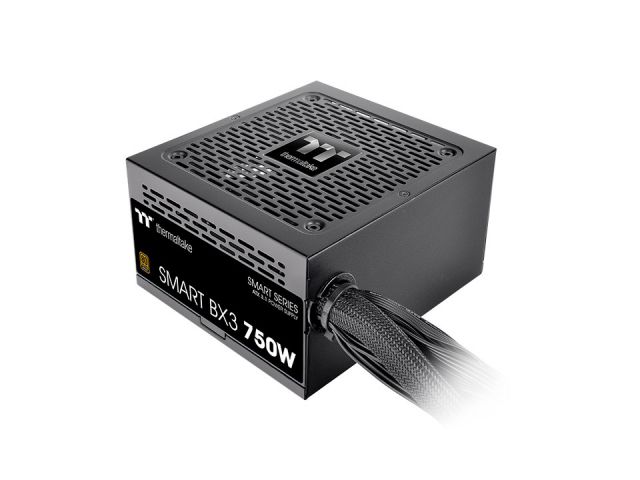

Smart BX3 Bronze 750W
PS-SPD-0750NNFABE-3

80 PLUS Bronze certified, non-modular PSU built to ATX 3.1 specifications and supported by a 5-year warranty.

ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.

High Quality 105°C Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.

High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.80 PLUS
Bronze-Certified and Intel C6/C7 States Ready
Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.


P/N PS-SPD-0750NNFABE-3
Watts 750W
Model SPD-0750AH2NLB-3
Max. Output Capacity 750W
Colour Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 15A-6A
Input Frequency Range 50Hz/60Hz
Input Voltage 100-240V~
Operating Temperature 5°C to + 45°C
Operating Humidity 20% to 85%, non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm FDB Fan
Efficiency Meet 80 PLUS® Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
PCI-E 6+2pin 2

Smart Zero Fan
Fan will not spin until the load exceeds 20%
No physical fan switch

Protection OCP/OVP/UVP/OPP/OTP/SCP
