O11D EVO - UPRIGHT GPU KIT
Show off your graphics card in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.

TWO MOUNTING WAYS WORK ON BOTH MODES
Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode. The GPU holds perfectly beside the motherboard and holds 2 HDDs or 4 SSDs behind the GPU.

SUPREME WATER-COOLING CONFIGURATION
Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.

ULTIMATE AIR-COOLING CONFIGURATION
Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.

SUPPORT WIDE VARIETY SIZES GPU

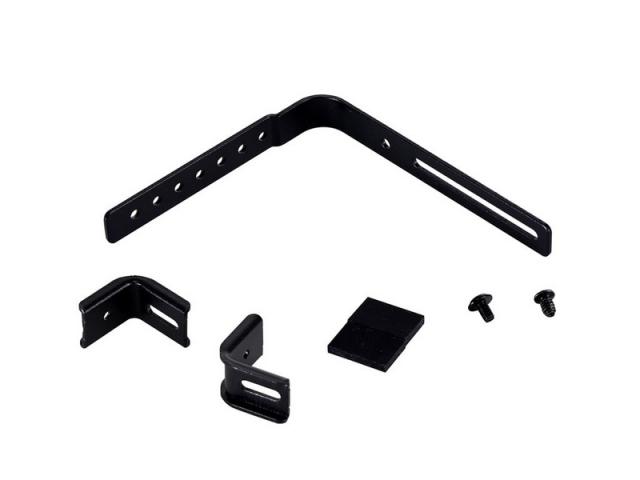

While the bracket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slot. In addition, the L-type support bracket can be adjusted according to the GPU’s width and thickness.

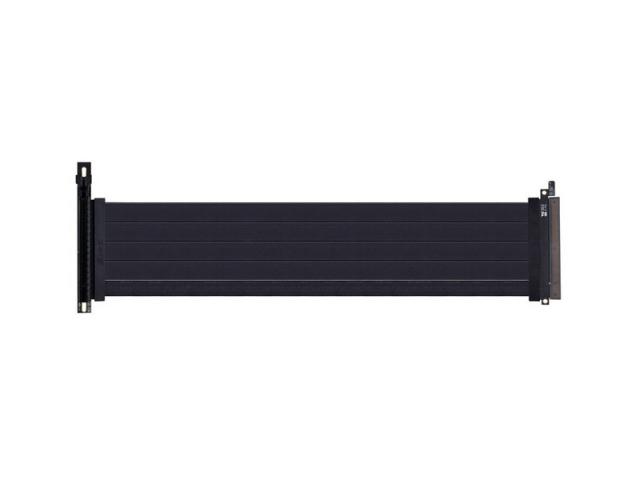

GEN 4.0 PCIE RISER CABLE
The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.

SPECIFICATIONS
COLOR: Black

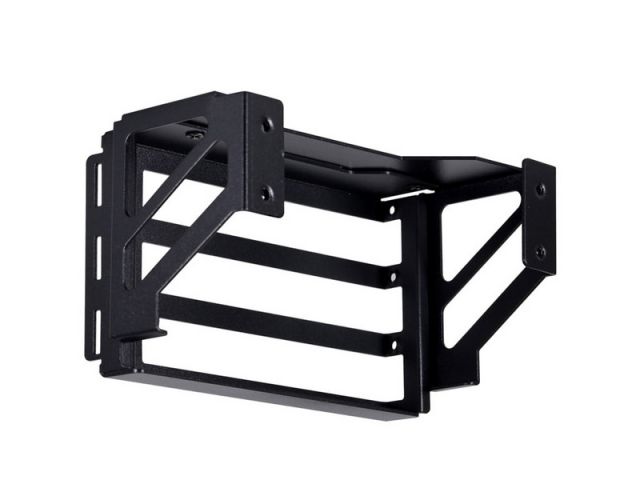

BRACKET DIMENSION: Mounting frame: 71.8mm(L) x 128mm(D) x 67.58 mm(H), Support frame: 70mm(L) x 81mm(D) x 10 mm(H)
MATERIAL: 1mm STEEL
PCIE RISER CABLE: Gen 4.0
CABLE LENGTH: 380mm
CABLE INTERFACE: PCI-E X 16
EXPANSION SLOT: 3 slots

GPU Compatibility:
- Length: Maximum 356MM
- Thickness: Maximum 62MM thick (with the big L-type support bracket)
- Width: HDD Tray Panel Scenario: 100MM ~ 150MM / Fan Bracket Scenario: 121MM~150MM / Water block GPU: Maximum 158MM
