Opis

- Enterprise-grade WiFi 6 access point with 4X4 MIMO and OFDMA functionality

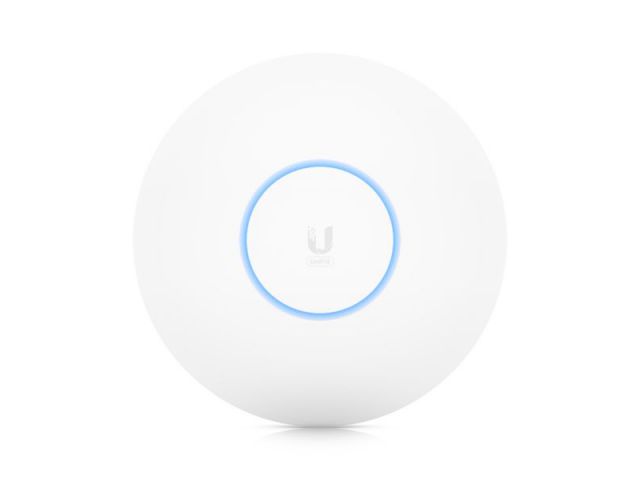

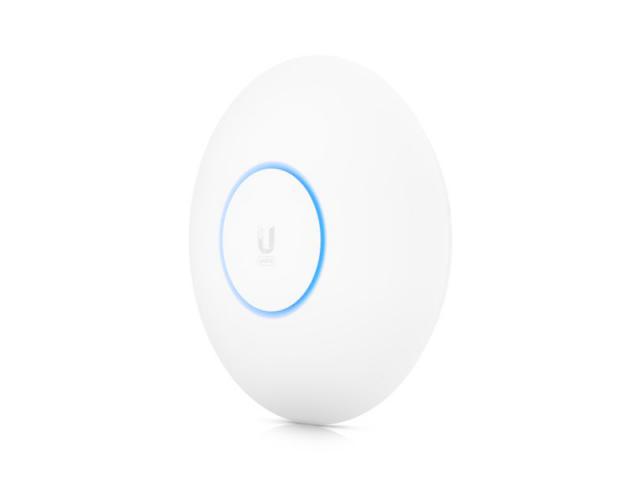

- The Access Point WiFi 6 Long-range (U6 LR) is a high-performance access point that brings powerful, four-stream WiFi 6 coverage to enterprise networks
- The U6 LR can reach an aggregate throughput rate up to 3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (4x4 MIMO) bands
- It also has a sideways, down-tilted antenna pattern to expand its coverage area
- The water and dust-resistant U6 LR can be mounted either indoors or outside, blending seamlessly into virtually any environment so youll never have to disrupt your spaces aesthetic to enjoy excellent wireless coverage
- The U6 LR simplifies the process of bringing WiFi 6 to enterprise networks that support a large number of clients
- It can be set up in minutes and fully managed with the UniFi Network web application or mobile app

Features
- High-efficiency 4x4 WiFi 6 (802.11ax)
- 5 GHz band (4x4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
- 2.4 GHz band (4x4 MIMO) with 600 Mbps throughput rate
- Powered by 802.3at PoE (PoE injector sold separately)
- IP54-rated water and dust protection for indoor/outdoor mounting versatility

WORKS WITH UniFi NETWORK APPLICATION
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support

BEST-IN-CLASS Wi-Fi COVERAGE AND PERFORMANCE
- With its Wi-Fi 6 capability, the U6-LR will strengthen your enterprise environment with the widest, most reliable coverage yet

FOUR-STREAM HIGH-EFFICIENCY Wi-Fi 6 TECHNOLOGY
- Wi-Fi 6 APs deliver an aggregate radio rate of up to 3 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios

POWERFUL, WIDER WIRELESS COVERAGE
- The U6-LR access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments

SIMULTANEOUSLY CONNECT TO MORE DEVICES
- Create and support over 300 distinct client connections

EASILY SET UP AND GROW YOUR NETWORK
- The U6-LR access point seamlessly integrates with the UniFi Network Application and simplifies network bridging

Specifications
HARDWARE
- Management interfaces: Ethernet, Bluetooth
- Networking interface: 1× GbE RJ45 port
- Button: Factory reset
- LED: RGB
- Power method: 802.3at PoE+, passive PoE (48V)
- Power supply: UniFi PoE switch, 48V/0.5A PoE adapter (notincluded)
- Supported voltage range: 44 to 57VDC
- Max. power consumption: 16.5W
- Max. TX power:
* 2.4 GHz: 26 dBm
* 5 GHz: 26 dBm
- MIMO:
* 2.4 GHz: 4x4
* 5 GHz: 4x4
- Throughput rate:
* 2.4 GHz: 600 Mbps
* 5 GHz: 2400 Mbps
- Antenna gain:
* 2.4 GHz: 4 dBi
* 5 GHz: 5.5 dBi
- Mounting: Wall/ceiling (included)
- Operating temperature: -30C to 60C (-22F to 140F)
- Operating humidity: 5% - 95% noncondensing
- Certications: CE, FCC, IC

SOFTWARE
- WiFi standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guesttrafc isolation: Supported
- Concurrent clients: 300+

SUPPORTED DATA RATES
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160

MECHANICAL
- Dimensions: fi 220×48 mm
- Weight:
* Without mount: 800 g
* With mount: 930 g
- Enclosure material: Plastic
- Mount material: SGCC Steel
- Weatherproofing: IP54
