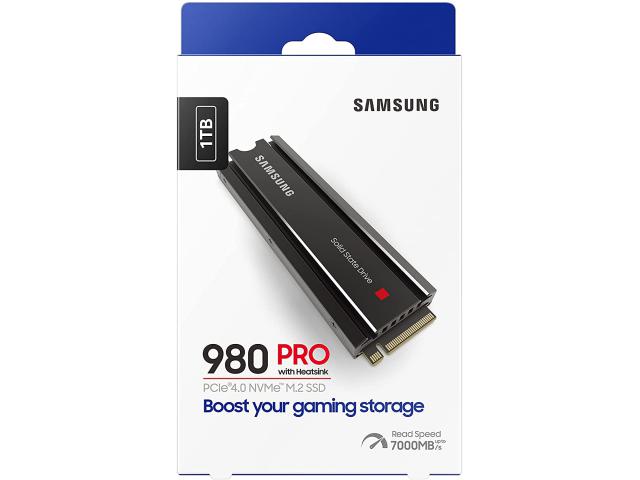

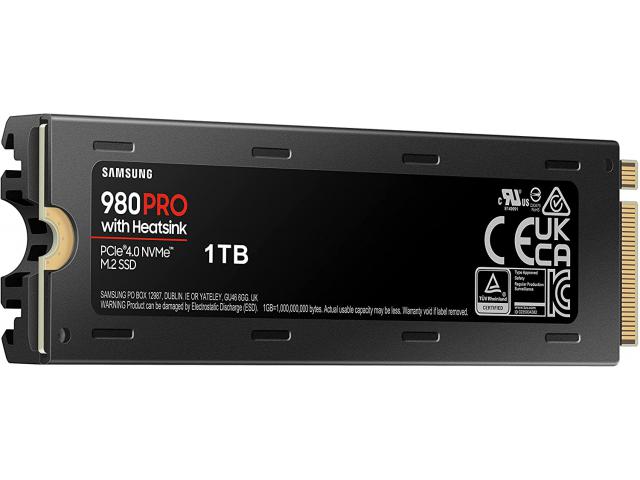

980 PRO w/ Heatsink PCIe® 4.0 NVMe™ SSD 1TB
MZ-V8P1T0CW
True PCIe® 4.0 NVMe™ speed (up to 7,000 MB/s for seq. reads, 5,100MB/s for seq. writes)
Ideal for heavy computing, high resolution graphics and PC gaming.
For console gaming, compatible only with Playstation® 5.
General Feature
Product Type NVMe™ SSD
Family Line 980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD
Capacity 1TB
Interface PCIe® 4.0
Compatibility PC & Playstation® 5
Performance
Encryption AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)
Type
Interface PCIe Gen 4.0 x4, NVMe 1.3c
Read/Write Speeds 7,000/5,000MB/s
Usage Application Client PCs, Game Consoles
Storage
Capacity 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features
Sequential Read Speed Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
Compatibility 980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.
Cache Memory Samsung 1GB Low Power DDR4 SDRAM
Trim Support Supported
S.M.A.R.T. Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
WWN Support Not supported
Device Sleep Mode Support Yes
Thermal protection Heatsink
General
Average Power Consumption (system level) *Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Environmental Specs
Shock 1,500 G & 0.5 ms (Half sine)
Form Factor
Product M.2 (2280) with Heatsink complying PCI-SIG® D8 standard
Dimensions (W x H x D)
Product 24 x 80 x 8.6 mm (with heatsink)
Weight
Product Max 30.5g
Warranty
Product * Limited warranty up to 5 years or up to the 600 TB TBW
