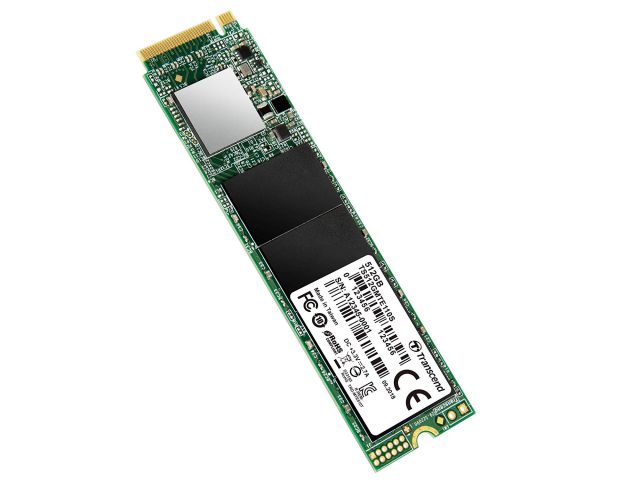

Transcend's PCIe SSD 110S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.
Dimensions (Max.) 80 mm x 22 mm x 3.58 mm
Weight (Max.) 8 g
Bus Interface NVMe PCIe Gen3 x4
Flash Type 3D NAND flash
Capacity 512 GB
Operating Temperature 0°C ~ 70°C
Operating Voltage 3.3V±5%
Sequential Read/Write (ATTO) 1,700/1,500 MB/s
Sequential Read/Write (CrystalDiskMark) 1,700/1,500 MB/s
4K Random Read/Write (IOmeter) 160,000/140,000 IOPS
Terabytes Written (TBW) 200 TBW
Mean Time Between Failures (MTBF) 1,000,000 hour(s)
Drive Writes Per Day (DWPD) 0.2 (5 yrs)
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty Five-year Limited Warranty
Warranty Policy Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
Operating System Microsoft Windows 7 (additional driver required), Microsoft Windows 8 (additional driver required), Microsoft Windows 10, Linux Kernel 2.6.31 or later
Note Please make sure that your computer has a M.2 slot.
DDR3 DRAM Cache No
Advanced Garbage Collection Yes
RAID Engine No
LDPC Coding Yes
