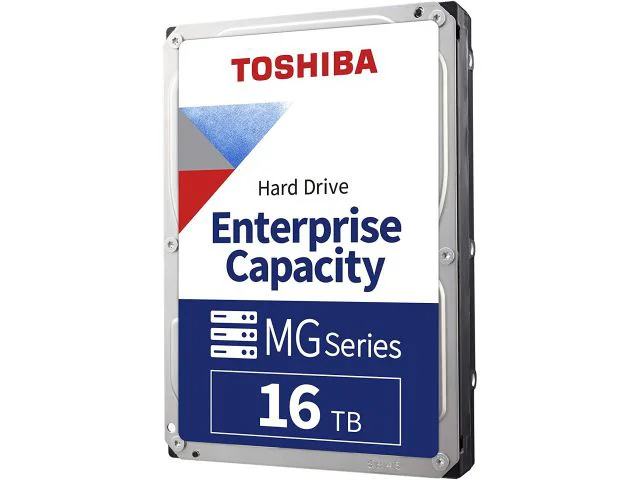

Capacity / Interface / Format Type / Model Number: 16TB / SATA / 512e / Standard / MG08ACA16TE


MG08 Series
Using an industry-leading 9-disk design pioneered by Toshiba, the MG08 Series provides up to 16TB of conventional magnetic recording (CMR) capacity and 7,200rpm performance.
The industry-standard 3.5-inch form-factor integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
Toshiba’s precision industrial laser welding technology is put to use to seal helium inside the 9-disk mechanics. The massive 16TB capacity is delivered using proven CMR recording technology providing optimum application compatibility and data reliability.
Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG08 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, and business critical servers and storage systems.

Form Factor 3.5-inch
Buffer Size 512MiB
Rotation Speed 7200rpm
Maximum Data Transper Speed (Sustained)(Typ.) 262MiB/s
Power Consumption ( Idle - A ) 4.00W
MTTF 2 500 000h
Weight ( Max ) 720g


Key Features
Industry Standard 3.5-inch 26.1 mm Height Form Factor
Conventional Magnetic Recording (CMR) up to 16TB for broad compatibility
Industry-leading 9-disk helium-sealed design for superior storage density
7,200rpm Performance
550 Total TB Transferred per Year Workload Rating
Rotational Vibration (RV) Sensors
512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Sanitize Instant Erase (SIE) and Self-Encrypting Drive(SED) option model available

Applications
Cloud-scale Sever and Storage Infrastructure
Software-defined data center infrastructure
File- and Object-based storage infrastructure
Tiered Storage Infrastructure
Workloads and Use-Cases that Benefit from High Capacity per Spindle
Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
Compliance Data Life-Cycle Management
Data Center Data-Protection and Data Back-up Infrastructure
