Capacity / Interface / Format Type / Model Number: 20TB / SATA-3.3 / 512e / Standard / MG10ACA20TE

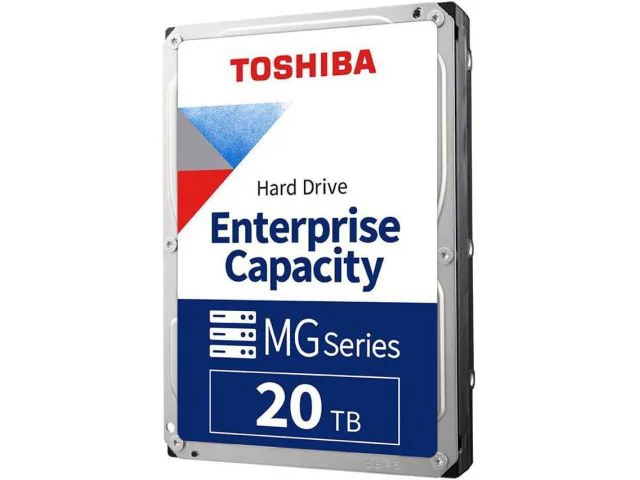

Rethink Your Data Storage Toshiba Enterprise HDDs
The MG10 Series features Toshiba’s fourth-generation, 10-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 20 TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.

The massive 20 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology. These advances help the MG10 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with a SATA 6.0Gbit/s interface, the MG10 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.


Features
Up to 20 TB capacity
Conventional Magnetic Recording (CMR) for broad compatibility
Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
Industry-leading 10-disk helium-sealed design for superior storage density
Industry Standard 3.5-inch 26.1mm height Form Factor
7200
rpm Performance
SATA 6.0Gbit/s Interfacess
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
550 Total TB Transferred per Year Workload Rating
512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
Power efficiency improvements vs. prior MG Series generations
Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Applications
File- and Object-based storage infrastructure
Tiered Storage Infrastructure Solutions
Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives
Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
Compliance Data Archives and Data Life-Cycle Management Storage Systems
Data Center Data-Protection and Data Back-up Infrastructure

Specifications
Capacity 20 TB
Form Factor 3.5-inch
Buffer Size 512MiB
Rotation Speed 7200rpm
Maximum Data Transfer Speed (Sustained)(Typ.) 268MiB/s
Power Consumption (Idle-A) 4.38W
MTTF/MTBF(AFR) 2 500 000 h (0.35%)
Weight (Max) 720g
