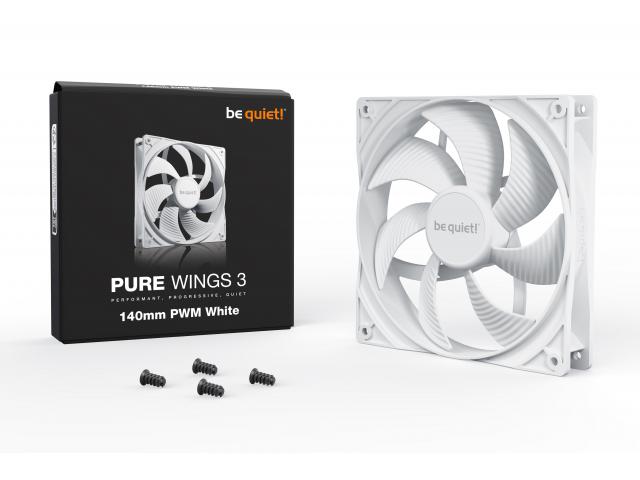

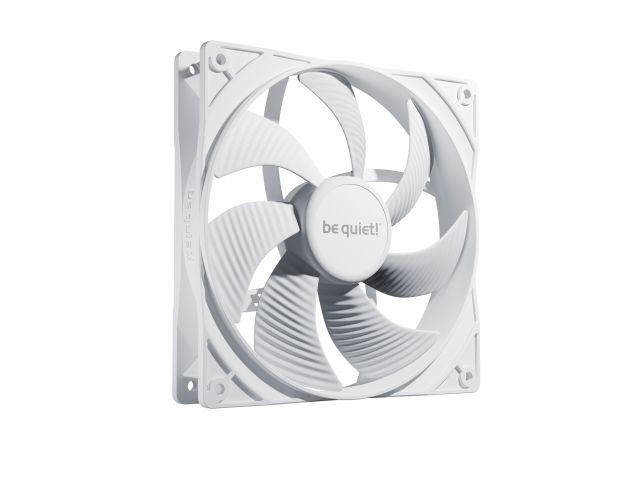

PURE WINGS 3
140mm PWM White
Performant, progressive, quiet

With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM White are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting companion for your gaming system.

Optimized fan frame for outstanding performance on radiators
Newly designed fan blades and re-arranged angle for extraordinary air pressure
Pure Wings 3 140mm PWM White can be operated with very low minimum rpm for very quiet operation
Long life rifle bearing gives an operating lifetime of 80,000 hours
Product conception, design and quality control in Germany


Model Pure Wings 3 140mm PWM White
Dimensions (mm) 140
Color option White
Lighting -
Fan speed at 100% PWM / 12V (rpm) 1200
Noise level at 100% PWM / 12V (dB(A)) 21.9
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96


Mechanical specifications
Dimensions (L x W x H), (mm) 140 x 140 x 25
Weight incl. fixed cables (g) 180
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing -
Screw fixing yes

Cables / Connectors
Daisy-chain compatible -
Lighting connector -
Connector 4-pin PWM
Cable length (mm) 460
Cable sleeve -

Performance / Noise
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Lifespan (h / 25°C) 80,000
Zero RPM mode -

Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 13.2
Current consumption (A) 0.06
Safety current (A) 0.30
Input power (W) 3.6
Rated Current LED (A) -

Accessories
Screws 4

Safety certification
Approvals CE / RoHS / RU / UKCA / WEEE

Environmental directives
RoHS yes
WEEE yes
Triman yes
